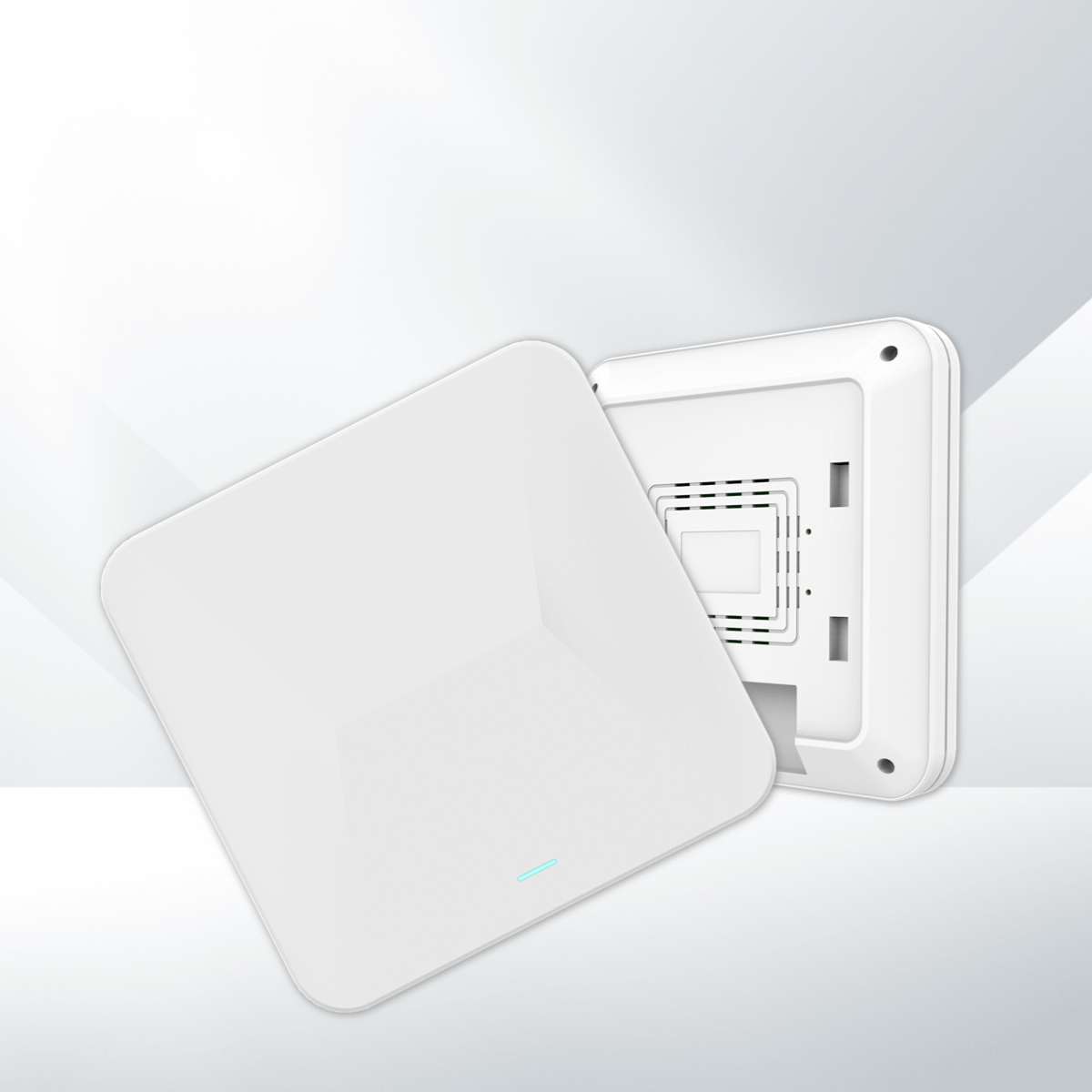

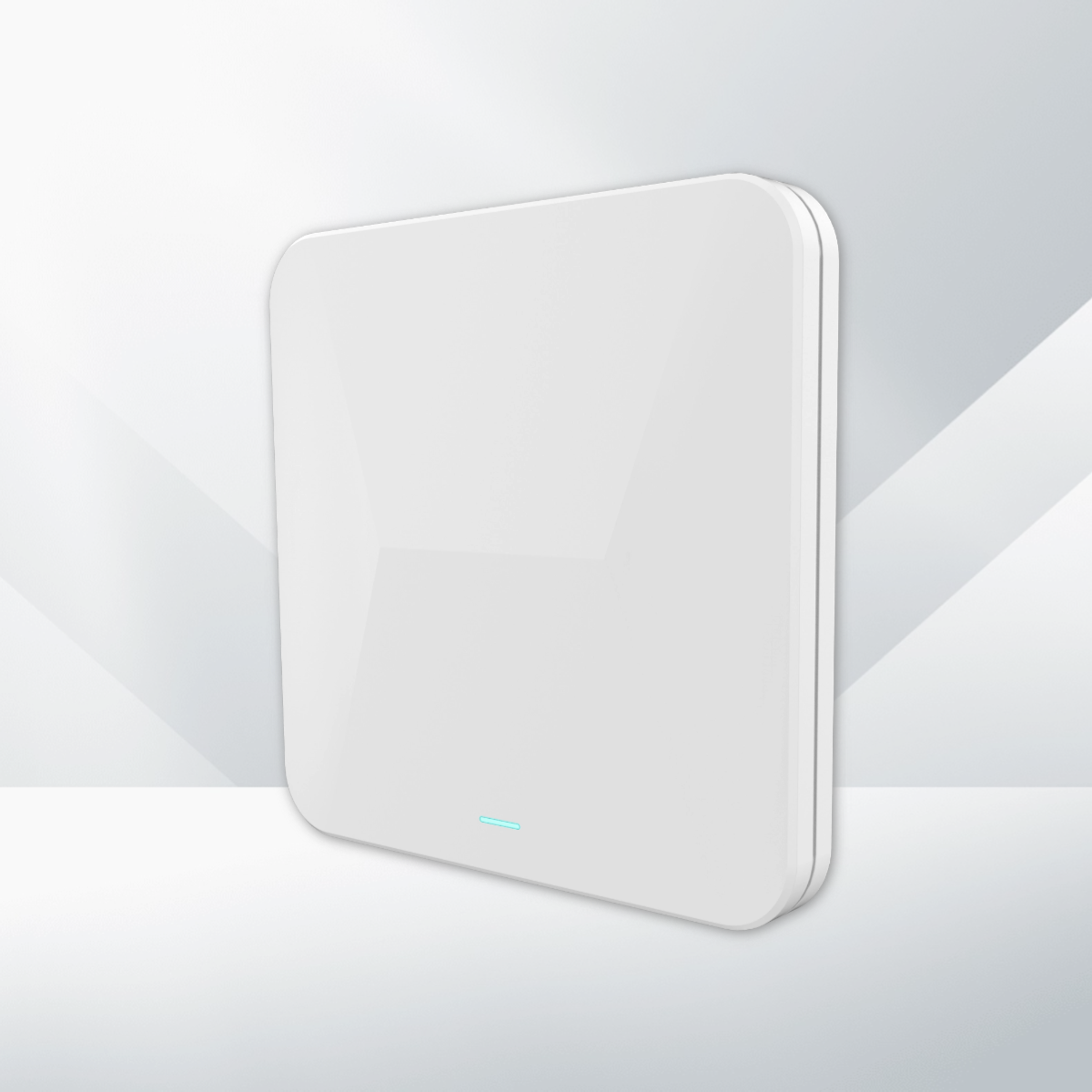

Eforthink AoA High-Precision Positioning Base Station
Advantages
Features
Parameters
Application
Core Technical Advantages
The indoor positioning system uses AoA technology to provide indoor positioning accuracy of 0.2 m to 1 m with angular resolution up to 2°. This precise positioning performance is used for high-accuracy indoor applications.
● Communication Range
The base station provides up to 200 m line-of-sight communication coverage.
● Scalable Infrastructure
The base station supports 1-to-3 cascade deployment through standard PoE for flexible network expansion.
● Real-Time System Monitoring
The base station prioritizes emergency alerts and battery status updates and supports tag-management functions including group calling and individual paging.
The indoor positioning system scales positioning coverage with installation height using a 3H coverage diameter with H ≤ 10 m.
The base station processes up to 200 tag updates per second.
Product Features
-
-
Ceiling-Mounted PositioningCeiling-mounted deployment is used for signal reception. The base station captures signals from positioning tags and transmits the data to a centralized positioning engine. By analyzing azimuth and elevation angles together with known height data, the indoor positioning system calculates precise indoor coordinates and supports indoor localization in obstructed environments.Coverage Radius and Installation HeightCoverage radius is related to installation height. For typical indoor deployment with a mounting height of 3 to 5 m, the precise positioning coverage radius is approximately 3 to 5 m.
-
Backend Server ConnectionThe base station must connect to a backend server to enable positioning functions. The server uses static IP mode and requires manual configuration based on the site network environment. The target server IP must be configured on the base station to establish connectivity.Network ConfigurationThe device supports two network configuration modes: single-device configuration and batch configuration. In wired mode, only the server address is required for setup.
-
Product Parameters
|
Product Dimensions |
223×220×45mm |
|
Positioning Technology |
AOA |
|
Housing Material |
PC+ABS |
|
Power supply mode |
Standard POE, support 1 drag 3 cascade |
|
POE Input Voltage |
802.3at 36–58V |
|
Positioning Wireless Standard |
802.15.4 2011UWB |
|
POE Output Voltage (3 Ports) |
POE Input Voltage -1.4V |
|
Wired Communication Interface |
LAN Port (10M/100M Auto-Adaptive) |
|
Wireless Positioning Standard |
Wireless Positioning Standard |
|
Function Configuration |
Priority to Receive Emergency Help Messages from Tag Cards, Monitor Battery Status of Tag Cards, Perform “Group Call” and “Individual Call”, and Parameter Reset |
Application Scenarios
-
Healthcare
The indoor positioning system supports real-time presence detection and indoor positioning in hospital wards and nursing home rooms. Indoor localization provides staff and patient localization management.
-
Logistics
Indoor localization supports non-line-of-sight (NLoS) positioning in warehouses and logistics parks, including rooms, corners, and signal-obstructed areas. Precise positioning helps locate targets in these obstructed areas. -
Industrial IoT
Occluded-area positioning in manufacturing plants provides location tracking in complex industrial environments with signal blockage.
