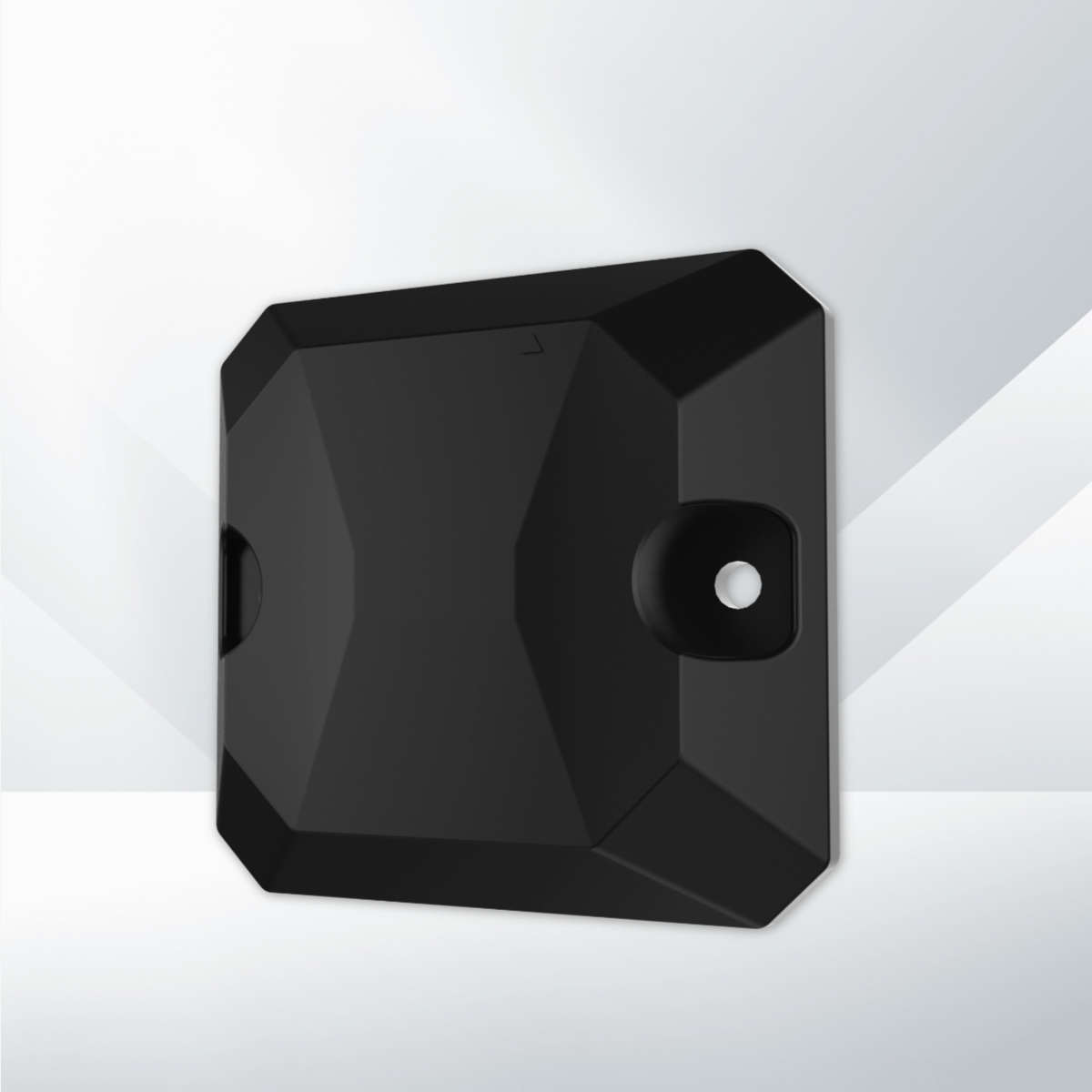

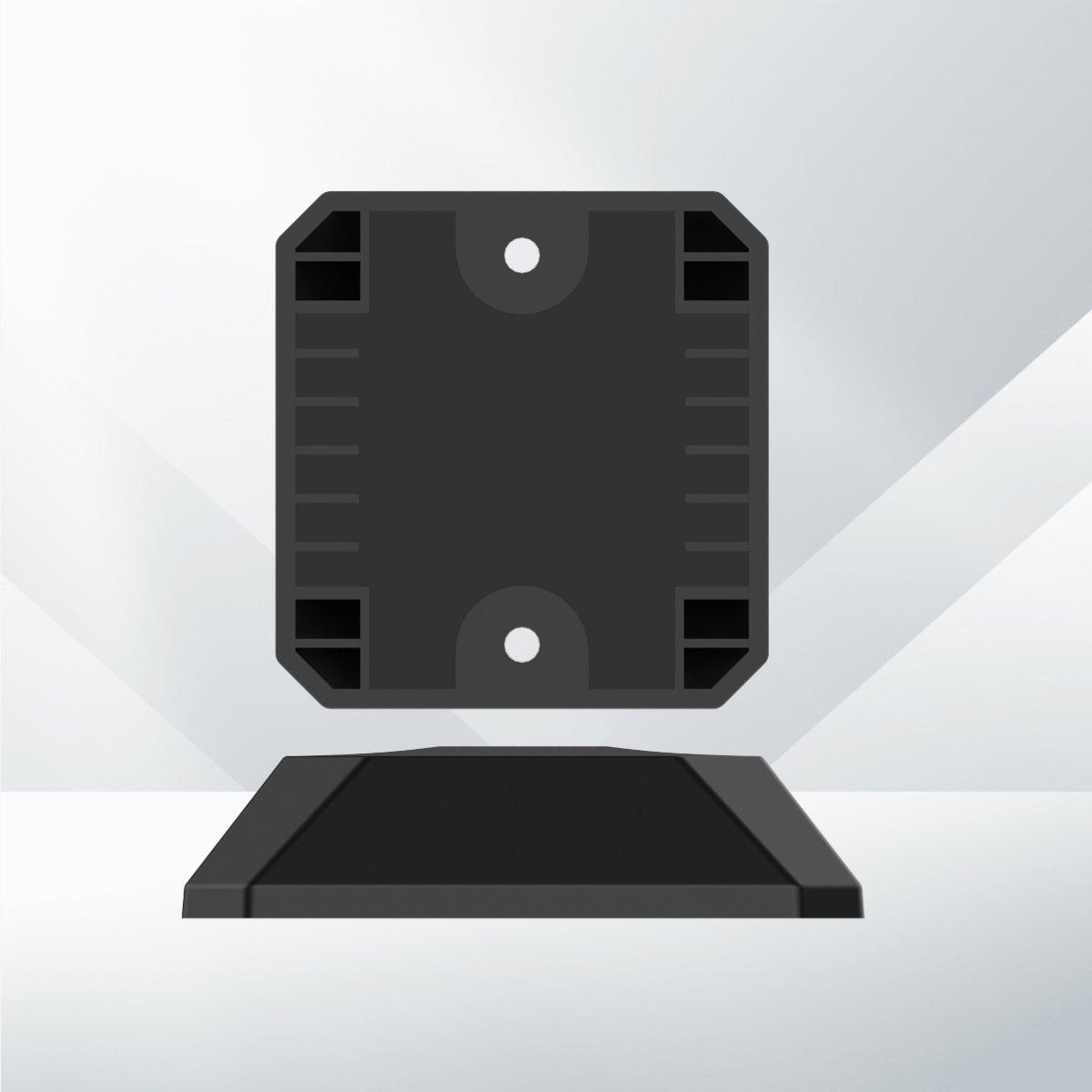

Eforthink Explosion-Proof Beacon Base Station
Advantages
Features
Parameters
Application
Core Technical Advantages
● Weakness-free Construction
Internal battery power and wireless signal transmission enable rapid deployment and maintenance-free operations.
● High Capacity
The product supports 500+ location finding devices simultaneously for large-scale RTLS real time location system scenarios.
● Ultra-Long Battery Life
The built-in 5000 mAh lithium battery supports uninterrupted operation during power outages, with battery life of up to seven years.
● Superior Performance and Durability
The product supports ground and roadway installation with crush resistance.
Product Features
-
-
Road Layout and Crush-ResistantThe product withstands vehicle crushing for stable performance on roads, construction sites, and open areas.
Product Parameters
|
Product Dimensions |
105×100×27mm |
|
Positioning Technology |
Beacon |
|
Battery Type |
lithium thionyl chloride battery |
|
Battery Capacity |
5000mAh |
|
Weight |
≤270g |
|
Storage temperature |
-40°C to 75°C |
|
Material |
PA66+30%GF |
|
Supply voltage/current |
3.6V/50uA |
|
Antenna |
Built-in antenna |
|
Protection grade |
IP68 |
|
Function Configuration |
Precise positioning, device management, two-way communication, low battery alarm, remote upgrade |
Application Scenarios
-
Chemical Industry
The page describes an integrated indoor/outdoor RTLS real time location system with multi-precision tracking. This application includes indoor RTLS as part of the integrated indoor/outdoor RTLS deployment. -
Electricity, Steel3D visualized personnel positioning is linked to business systems for full workforce management.
