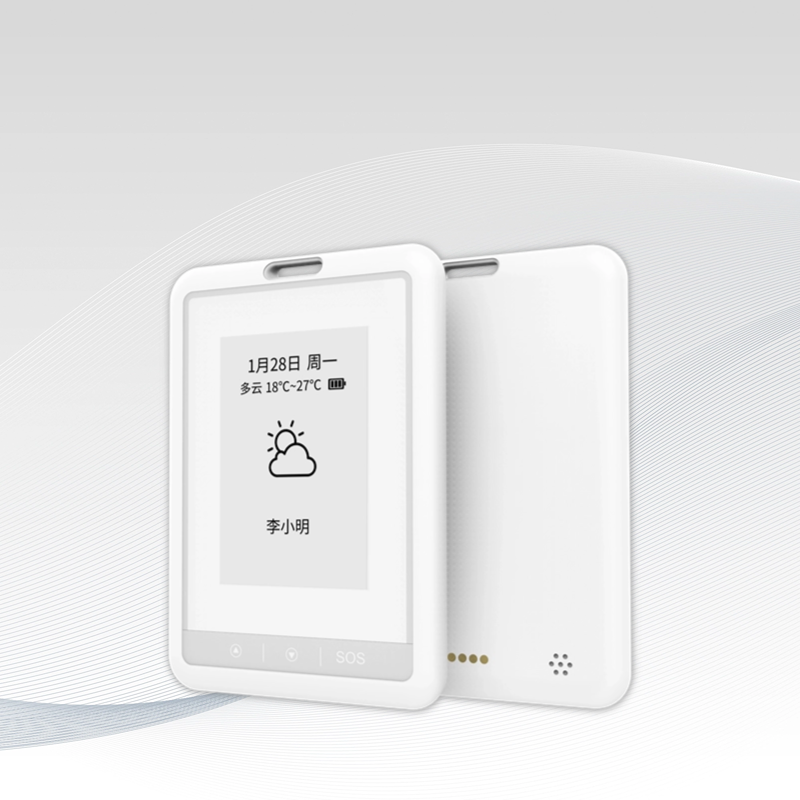

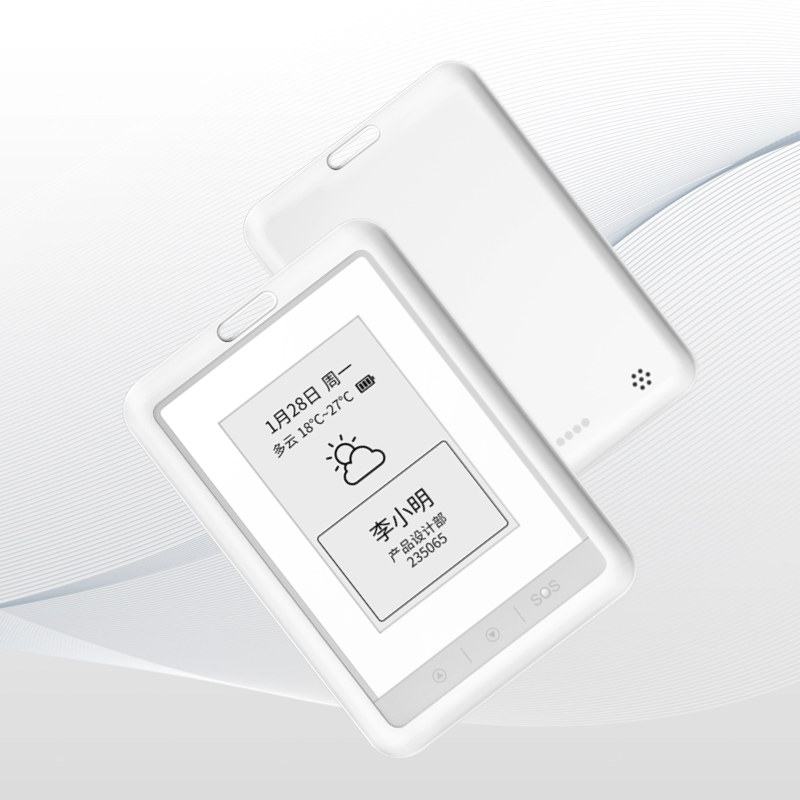

Eforthink Explosion-Proof Intelligent RTLS-Enabled Work ID Card
Advantages
Features
Parameters
Application
Core Technical Advantages
UWB positioning technology provides centimeter-level precise positioning with strong anti-multipath capability for stable and reliable signal performance.
Multi-technology positioning using UWB and GPS supports seamless real time tracking across complex indoor and outdoor environments.
IP68 protection and an ultra-low power design support long-duration operation in harsh industrial conditions.
Two-way communication enables instant alerts and evacuation commands through RTLS-enabled systems.
Product Features
-
-
● Built-in Barometer: The built-in barometer enables altitude measurement for multi-floor positioning and integration with positioning systems.
● 3-Axis Accelerometer: The 3-axis accelerometer enhances real-time motion detection accuracy for location tracking applications.
● E-Ink Display: The low-power E-Ink display provides clear visibility of Personnel Location Tag status updates.
● Low Battery Reminder: The low battery reminder supports continuous operation of the work ID card.
Product Parameters
|
Product Dimensions |
100.0x70.0x8.0mm |
|
Positioning Technology |
UWB + AOA/Beacon + GPS Satellite Positioning |
|
Charging Interface |
Pogo Pin-4 (Magnetic Type) |
|
Battery Type |
Polymer Lithium-Ion Battery |
|
Charging Voltage/Current |
4.5-5.5V / 270mA |
|
POGO PIN Interface |
ESD Protection IEC61000-4-2: 8kV (contact) |
|
Communication Wireless System |
802.15.4g FSK (900MHz Zigbee) and 802.15.4 (2.4GHz Zigbee) available |
|
Basic Functions |
Precise Positioning, Vibration Reminder, Pressure Measurement, Electronic Display Screen, Two-Way Communication, Low Battery Alarm, Remote Upgrade, Text Message Delivery, Built-in RFID, Supports One-Card System |
Application Scenarios
-
Personnel Distribution Statistics
Use real time tracking and location tracking data for personnel tracking by zone, including entry and exit event logs. Real-time location data also supports overcrowding alerts and evacuation analytics across configured zones.
-
Alarm Management & Reporting
RTLS technology supports alarm monitoring for SOS alerts, geofence violations, stationary personnel detection, and crowd density warnings. Alarms can be searched by personnel, department, time, or location through RTLS platforms.
-
Two-Way Communication
Send evacuation commands by department, zone, or individual personnel tag. Real-time alerts can also be triggered on digital maps through RTLS systems for rapid response.
