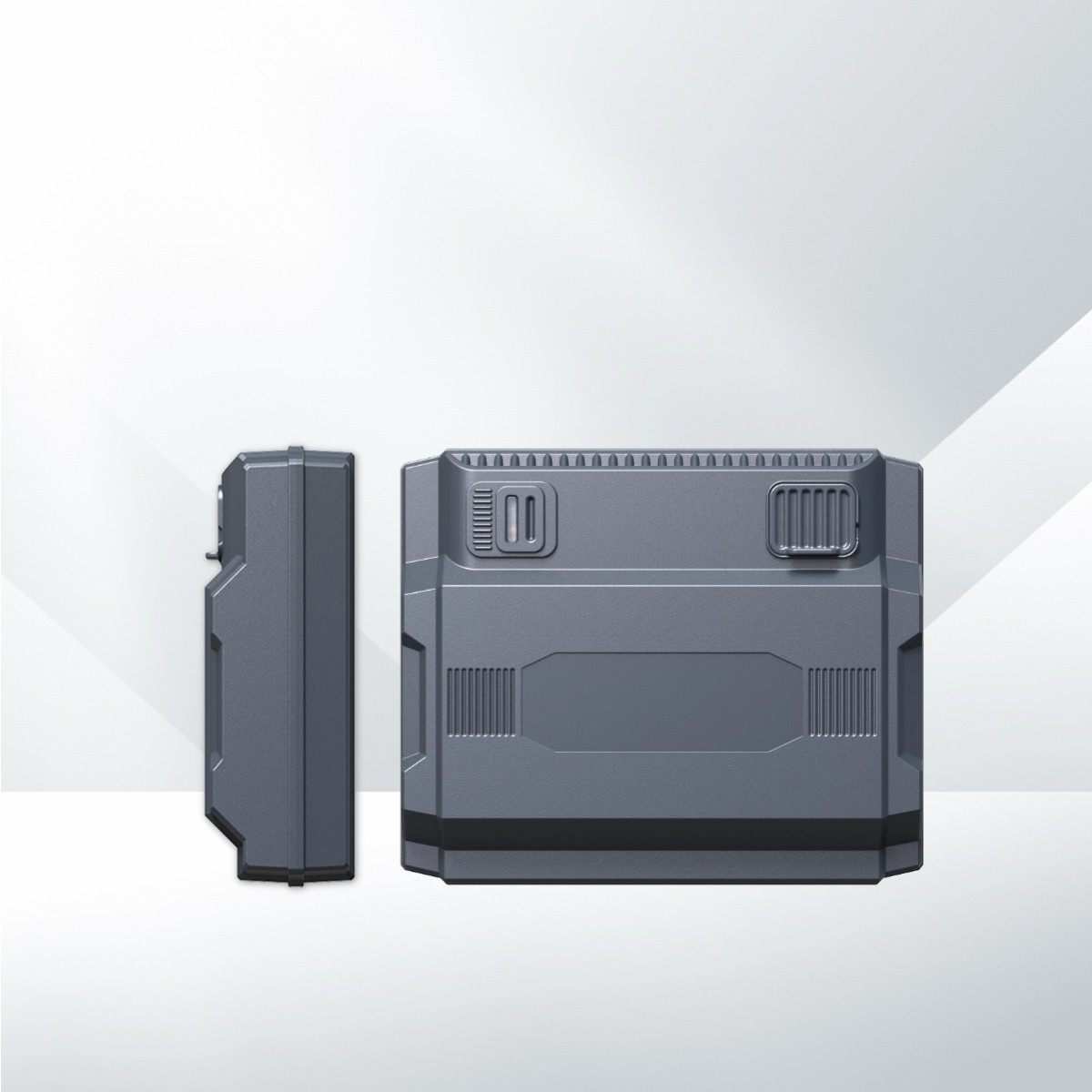

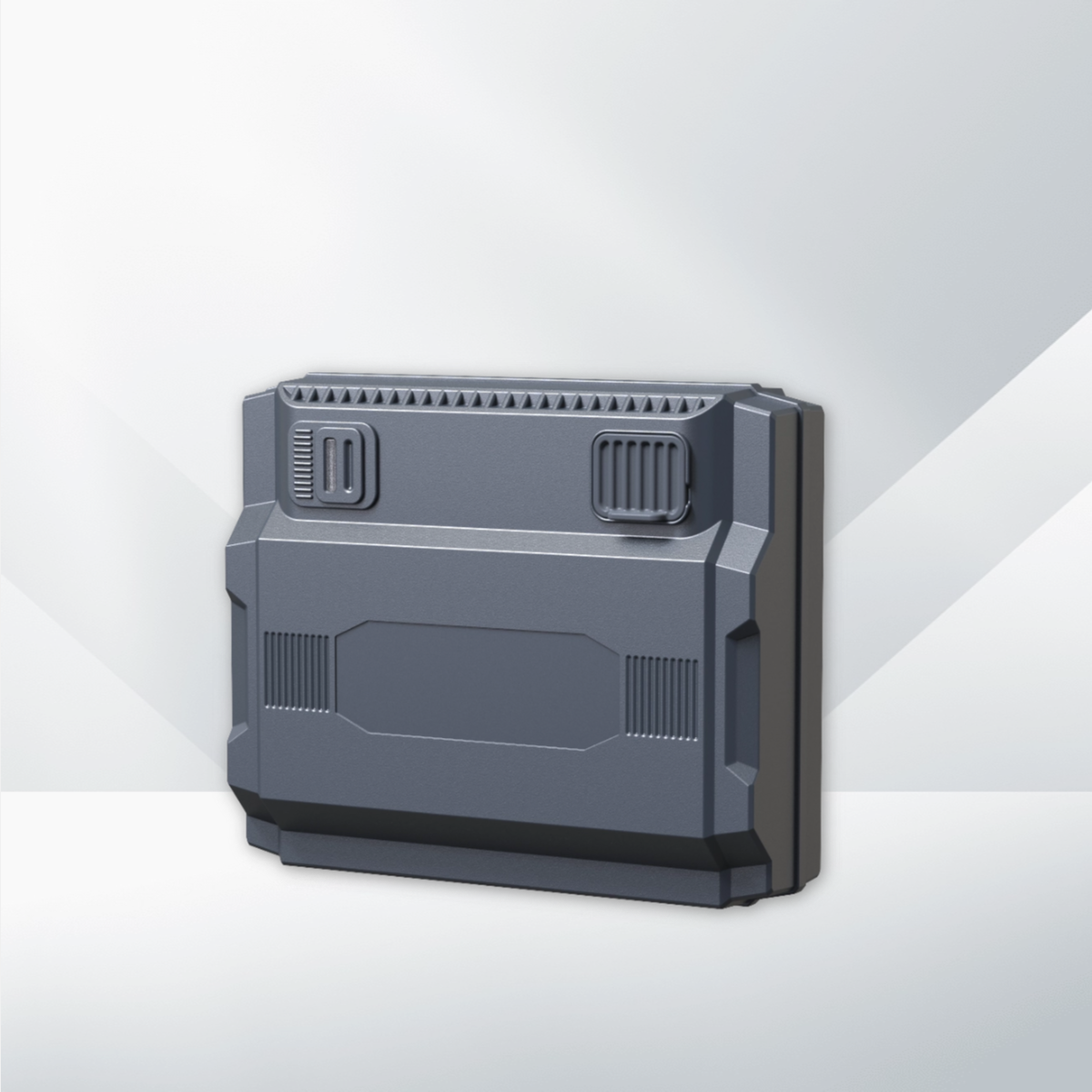

Eforthink High Precision UWB Beacon Base Station
Advantages
Features
Parameters
Application
Core Technical Advantages
High-Precision Positioning with UWB Technology
The product uses UWB technology and ultra-wideband (UWB) pulse signal technology to achieve sub-30 cm accuracy. This UWB technology reduces hardware costs compared with traditional systems while maintaining superior performance in RTLS applications.
Wireless Deployment for RTLS Flexibility
Powered by an internal battery and wireless transmission, the UWB anchor requires no cabling, enabling rapid deployment and integration into a real time location system.
Ultra-Long Battery Life
Battery capacity is 32,000 mAh, and maximum battery life is ≥60 months at a 1 Hz refresh rate.
Multi-Tag Identification
The product can identify hundreds of UWB beacons simultaneously.
Product Features
-
-
IP68 Protection
The product is waterproof, dustproof, and surge-resistant, with IP68 protection for harsh environments.Intrinsic Safety Design
The product has explosion-proof certification for use in volatile RTLS scenarios.
-
Indicator Lights:When external power is used, the blue LED remains steady. During firmware upgrades, the green LED blinks in synchronization with the data packet rate.External Power Supply InstructionsRemove the plastic plug from the base station power interface. Secure the pogo pin magnetic charging cable using screws. Connect the cable to a power adapter for continuous operation.
-
Product Parameters
|
Product Dimensions |
162.9×135.9×46.5 mm |
|
Positioning Technology |
UBeacon |
|
Maximum Battery Life |
≥60个月（1Hz） |
|
Positioning Wireless Standard |
IEEE802.15.4_2011 UWB |
|
Positioning method |
TOF |
|
Battery Capacity |
32000mAh |
|
Shell Air Discharge ESD Protection |
IEC61000-4-2:15kV（air） |
|
POGOPIN Interface ESD Protection |
IEC61000-4-2:8kV（contact） |
|
Function Configuration |
Accurate Positioning, Equipment Management, Bi-directional Communication, Low Battery Alert, Remote Upgrade |
Application Scenarios
-
High-Precision Positioning
Deploy UWB anchors and location beacons in chemical plants, power stations, and tunnels to enable a real time location system for personnel tracking and asset tracking.
The deployment uses UWB anchors for precise positioning of personnel and assets. -
High-Precision Ranging
UWB ranging supports identification, security authentication, pass-by detection, and collision avoidance detection.
These UWB ranging applications cover the identification and safety functions listed for the product.
