Eforthink Indoor Positioning Beacon
Advantages
Features
Parameters
Application
Core Technical Advantages
● Cable-Free Installation
No low-voltage wiring is required, enabling fast and flexible deployment of location beacons on indoor walls or ceilings. This simplifies installation of the indoor location system.
● Replaceable Battery Design
The beacon is powered by 2 × AA batteries, providing replaceable power for continued use in a real time location system.
Product Features
-
-

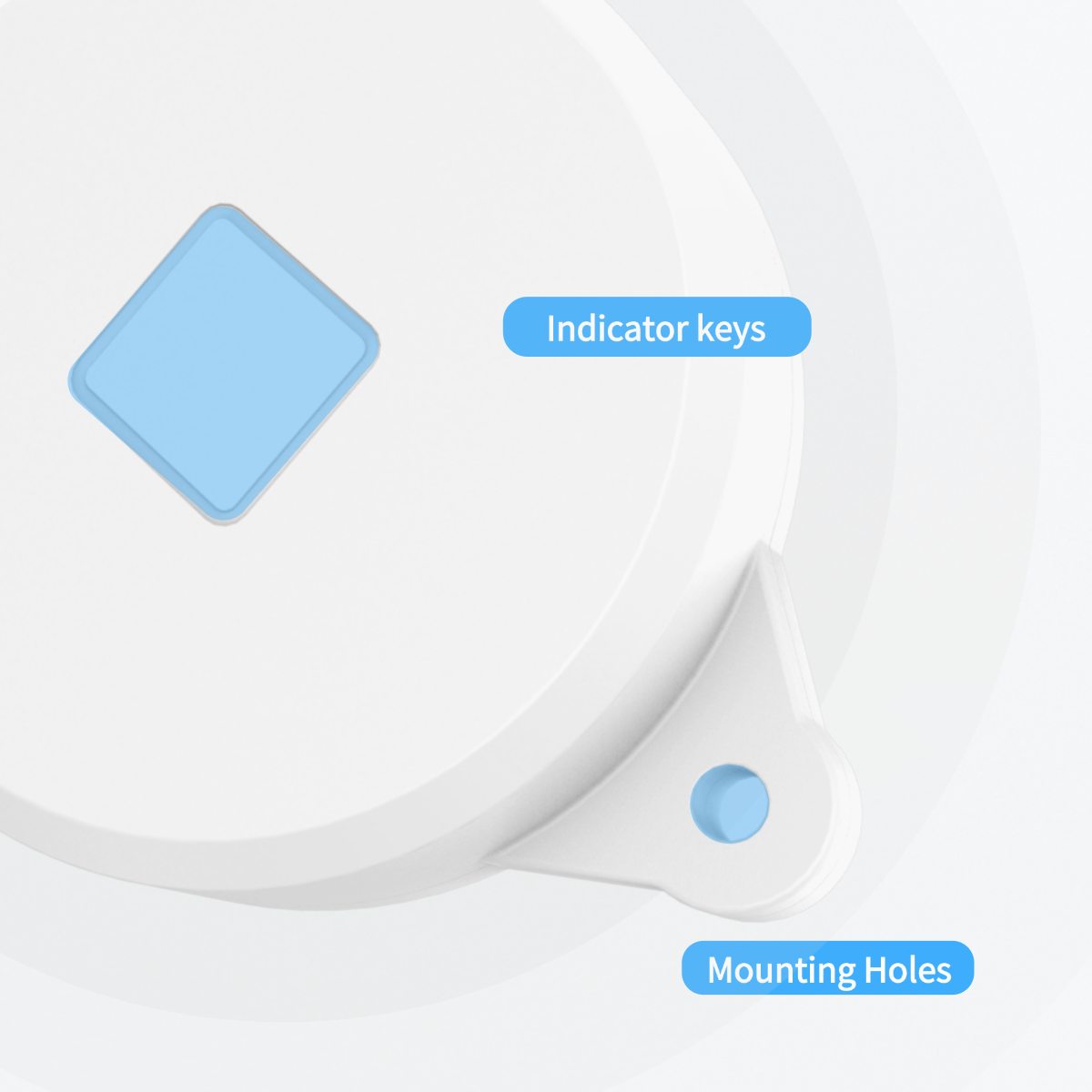

Button Interaction
Power Status Indicator: Press the button to display power status through simultaneous red and green LED indicators on the positioning device.
This provides a direct device-status check for the indoor positioning system.
-

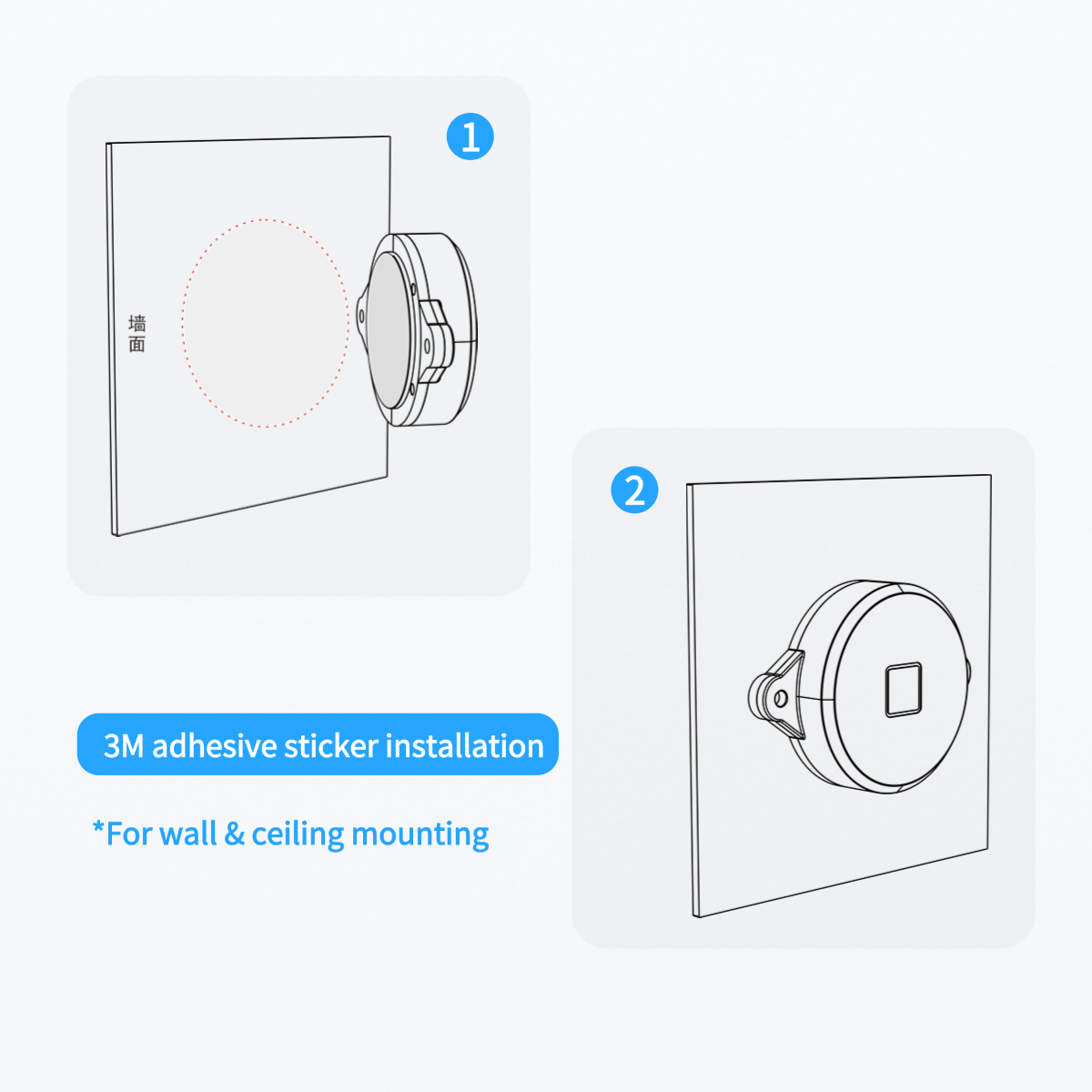

3M Adhesive Installation
Remove the protective film from the back of the device and align the beacon with a clean, dry wall surface.
After applying the device to the wall, press firmly on the front surface to complete installation.
This mounting method supports quick deployment of indoor location technology without drilling.
-
-
-

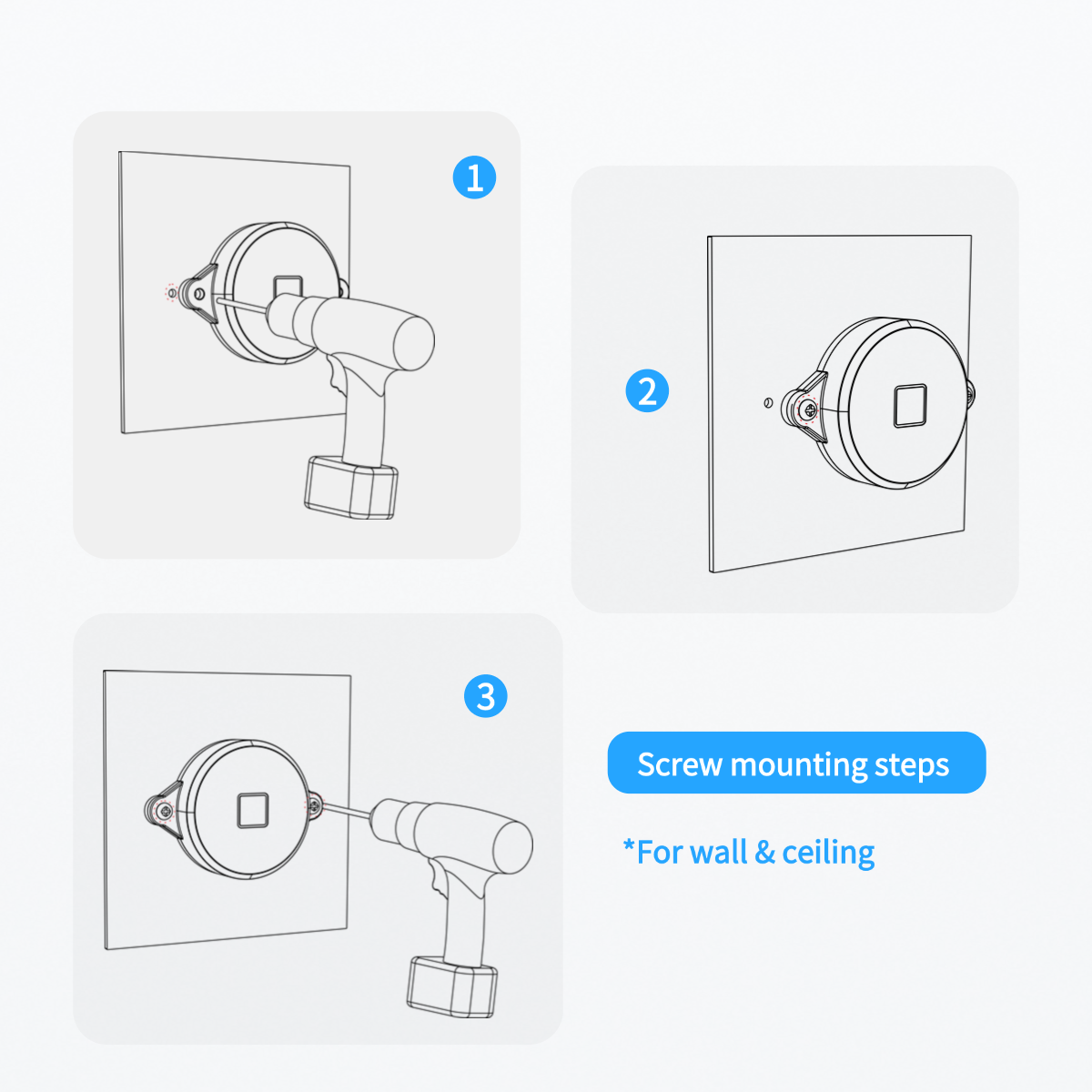

Screw Mounting Installation
Position the beacon on the wall and mark the mounting holes according to the device hole layout.
Drill the corresponding holes, insert M4 self-tapping screws through the mounting holes, and secure the beacon to the wall.
Tighten all screws to complete installation. This provides a fixed installation option for the indoor location system.
Product Parameters
|
Product Dimensions |
100.0×70.5×21.5mm |
|
Positioning Technology |
Beacon |
|
Product weight |
≤53g |
|
Battery Type |
lithium thionyl chloride battery |
|
Shell material |
ABS |
|
Battery Capacity |
2700mAh |
|
Function Configuration |
Precise positioning, device management, battery reminder, remote upgrade |
Instructions for use

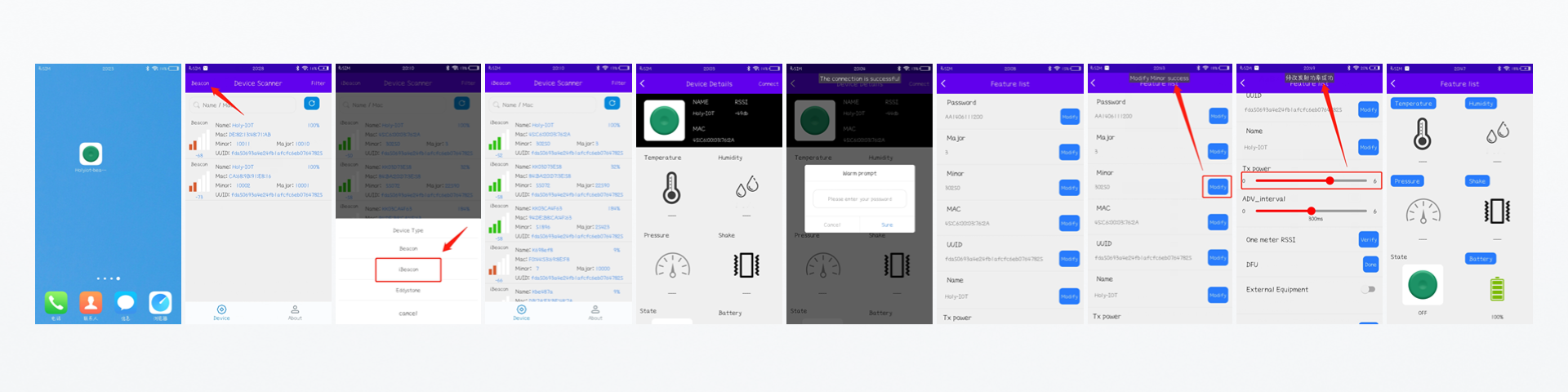

APP Installation & Control
Install the Holyiot Beacon App via APK. The application provides the control interface used with the beacon.
Device Control
Control device peripherals, such as LED indicators, through the app interface. This supports device management within the indoor positioning system.
Beacon Broadcast Mode Switching
Switch between Universal Beacon, iBeacon, and Eddystone broadcast protocols through the application. These configurable broadcast modes support indoor positioning using BLE in compatible deployments.
The device supports real-time sensor data monitoring when the corresponding sensor data is available.
Supported data listed on the current page includes temperature, humidity, atmospheric pressure, motion or shake detection with a response within 20 seconds, physical button status, and battery level.
These data can supplement indoor location technology and device-management workflows.
-
Zone ControlUse the RTLS system to create electronic fences for restricted areas and trigger alerts for unauthorized entry or boundary violations.
The indoor RTLS provides the location context used by zone-control rules within the real time location system. -
Behavioral MonitoringUse RTLS tracking to identify location-based conditions such as overcrowding or prolonged stays in designated zones.
The indoor location system can generate real-time alerts and support corrective actions based on configured location rules.
