Eforthink Multi-Functional Helmet Locator Tag
Advantages
Features
Parameters
Application
Core Technical Advantages
● IP67-Rated Protection
The UWB tag has IP67-rated protection for extreme industrial environments.
● SOS Emergency Button
The UWB tag includes an SOS emergency button for instant distress signal transmission.
● Centimeter-Level Positioning
UWB positioning technology and hybrid algorithms provide centimeter-level positioning.
● Fast Charging (<3 Hours)
The UWB tag supports charging in less than three hours.
● Hazard Proximity Alert
The UWB tag provides real-time warnings when approaching hazardous zones.
Product Features
-
-
● SOS Emergency Function: Triple-press the button to trigger an alarm. The UWB tag responds with a flashing red LED and vibration feedback.
● Power Query Function: Long-press the button for 3 seconds to check battery status. The red and green LEDs indicate battery level: red for below 50% and green for 50% or above.
● Notification Alerts: The red LED and vibration activate for incoming calls, evacuation commands, and safety alerts, including unauthorized-zone alerts and proximity-to-hazard alerts.
● Low Battery Reminder: The red LED blinks twice every 5 seconds when the low-battery reminder is active.
● Charging Status: A breathing red LED indicates charging. A solid green LED indicates that charging is complete.
● RFID Integration: The tag supports smart card interoperability for access control and inventory management.
Product Parameters
|
Product Dimensions |
57x38x17mm |
|
Positioning Technology |
UWB+AOA/Beacon |
|
Charging/Power Supply Interface |

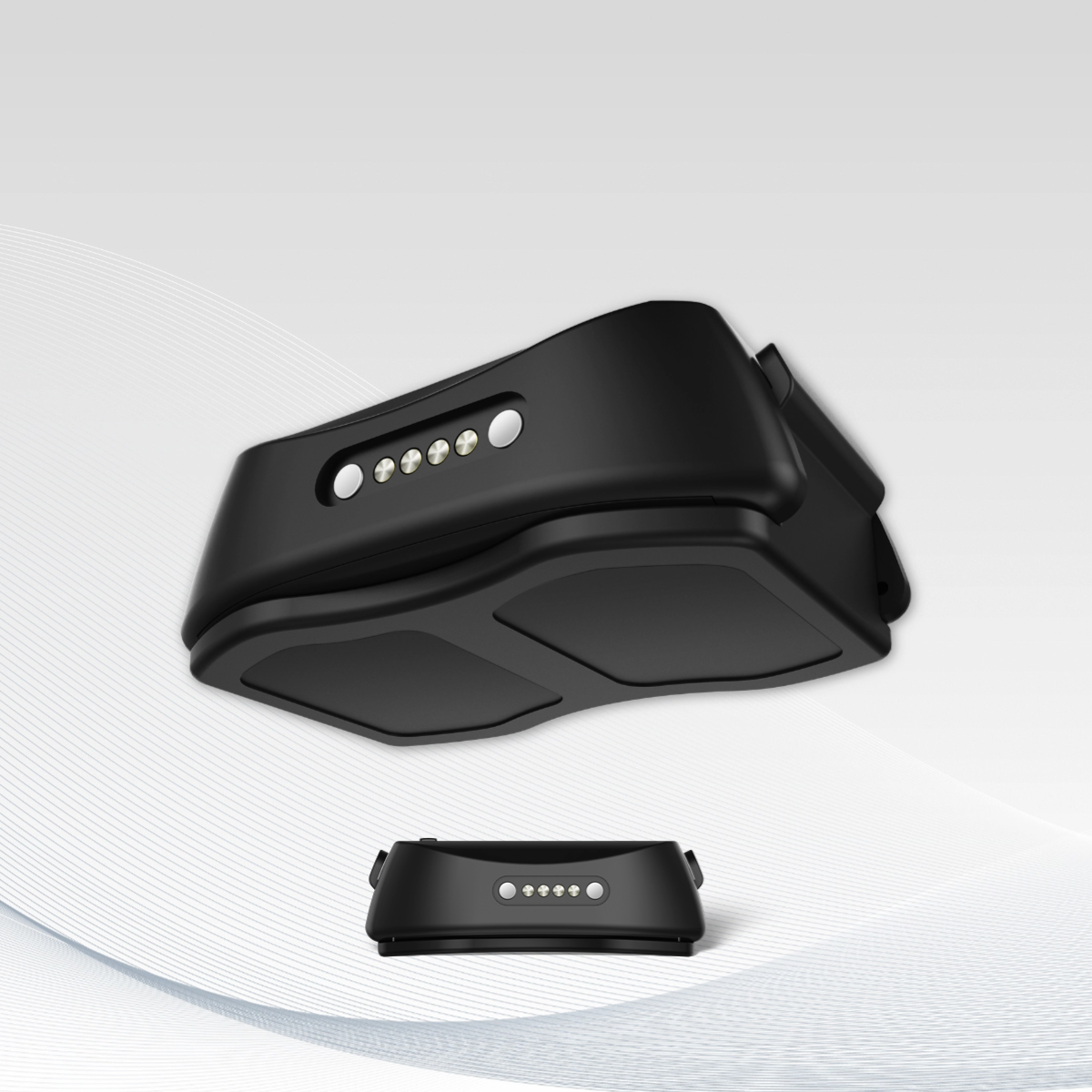

Pogo Pin-4 (magnetic charging) |
|
Battery Type |
Lithium polymer battery |
|
Battery Capacity |
400mAh |
|
Charging/Power Supply Voltage/Current |
5V/430mA |
|
Positioning Wireless Standard |
802.15.4 2011 UWB |
|
Function Configuration |
SOS button, sound reminder, vibration reminder, LED flashing reminder, low battery reminder, button interaction, built-in RFID (compatible with smart cards) |
Application Scenarios
-

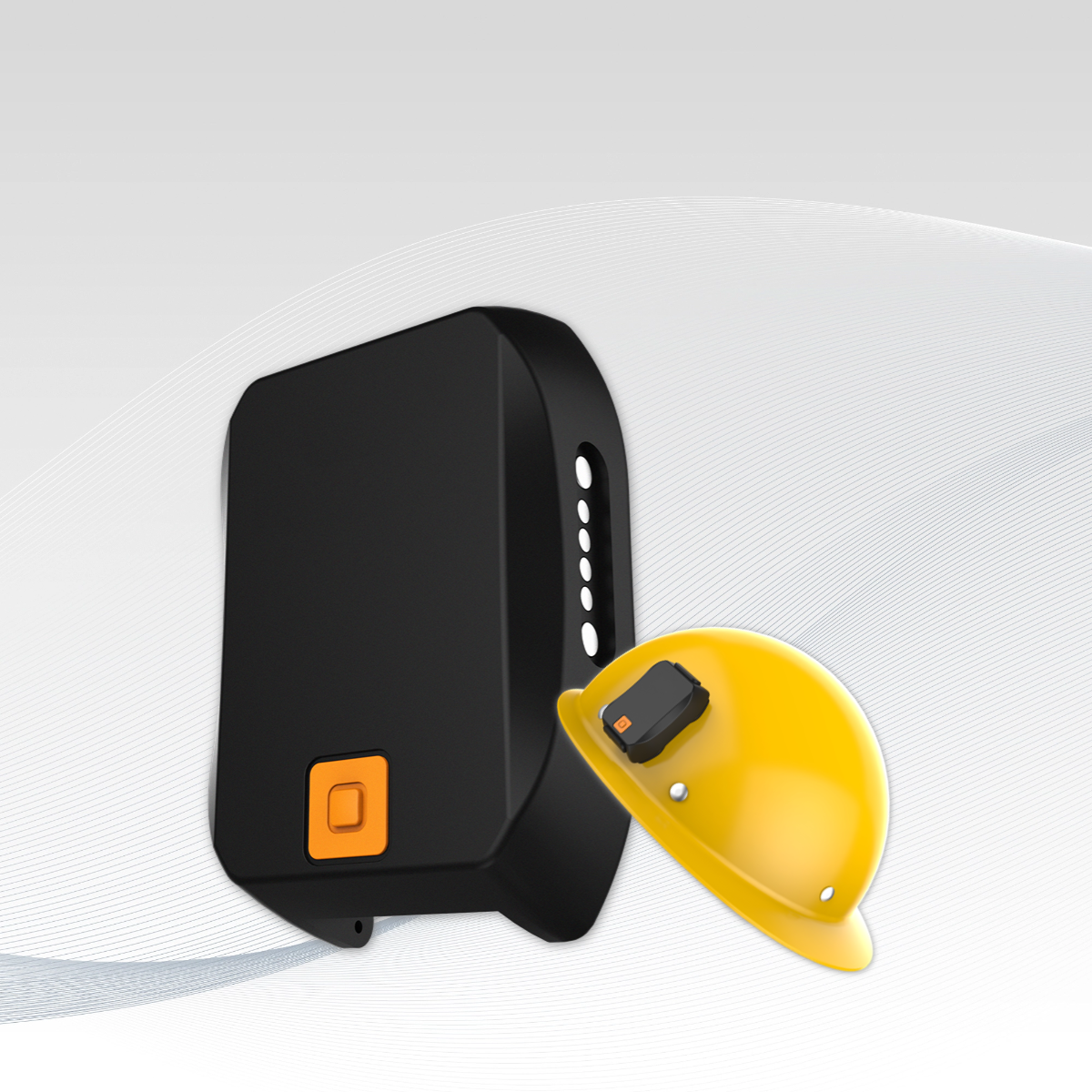

Helmet Mounting
Secure the UWB tag into the helmet card slot using a buckle. Clean the attachment area with alcohol and allow it to dry before pressing firmly for optimal adhesion. This mounting method is used in construction and mining environments for personnel tracking and RTLS-based safety compliance.
-
Silicone Strap WearingWear the UWB tag on the wrist using adjustable Velcro straps. This wearing method is suitable for logistics and healthcare workers who need a lightweight positioning device for personnel tracking.
-
Hook MountingHang the UWB tag inside vehicles or fixed structures using hooks. This mounting method is suitable for automotive manufacturing and warehouse tracking applications and supports asset tracking visibility.
-
Waist Buckle Attachment
Clip the UWB tag onto belts for high-mobility personnel such as firefighters and factory inspectors.
