Eforthink Multi-Function Color Screen Smart Health Positioning Wristband
Advantages
Features
Parameters
Application
Core Technical Advantages
RTLS technology combines UWB positioning technology, AoA, and BLE beacon positioning for multi-source fusion accuracy.
UWB and RTLS algorithms provide centimeter-level real-time positioning accuracy for precise positioning and real time tracking.
The built-in barometer provides altitude measurement and enhances floor-level accuracy in indoor positioning.
IP67 waterproof and dustproof protection supports use in demanding environments.
The wristband monitors heart rate, blood oxygen, body temperature, and activity levels in real time.
The 3-axis accelerometer supports precise motion detection and step tracking.
Product Features

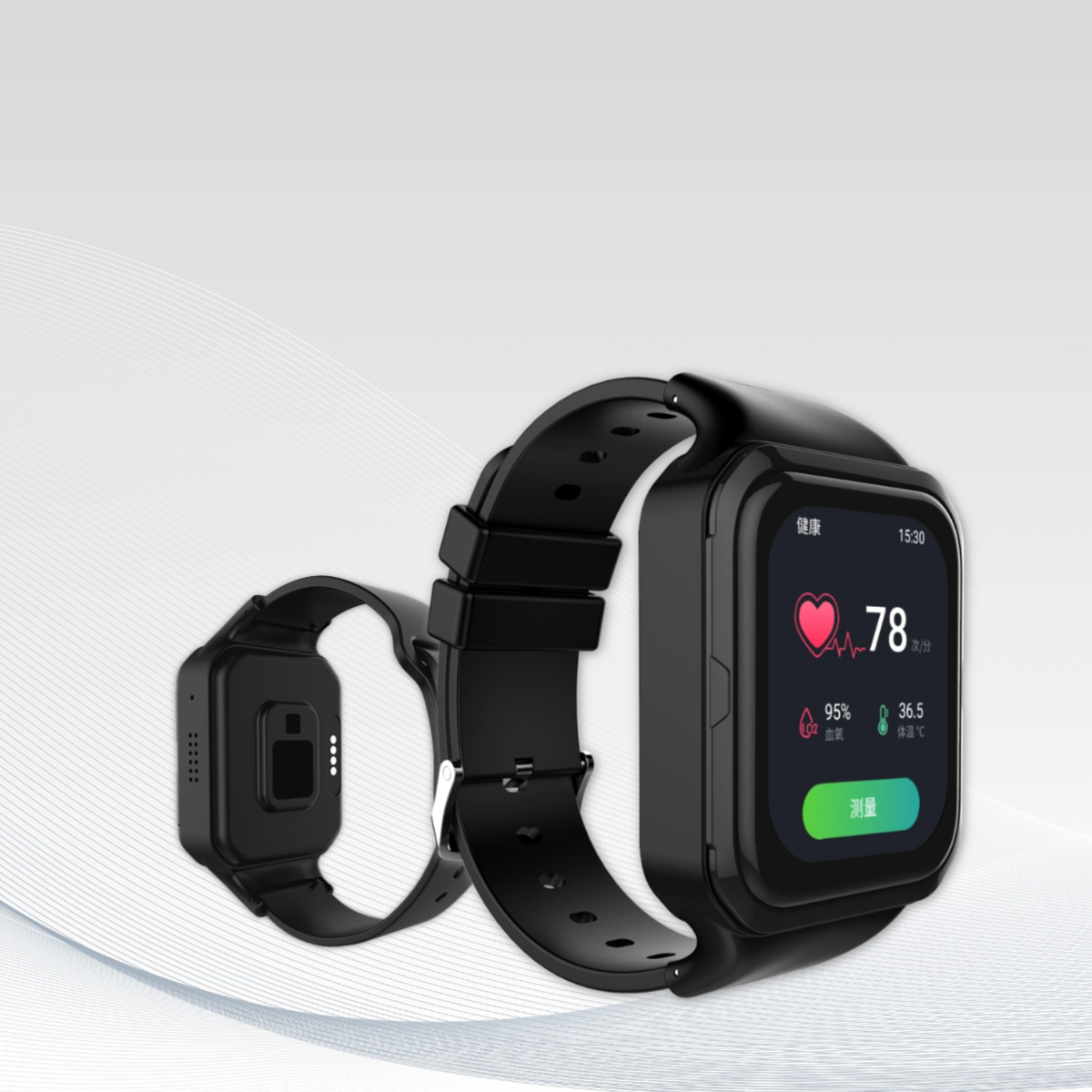

Short press the bottom button to access real-time health metrics. Tap “Measurement” to start automatic testing. If no valid measurement is completed, the device returns to the interface after 60 seconds.
Triple press any button to send SOS alerts, triggering system-wide notifications, screen alerts, and vibration feedback.
The wristband broadcasts 30-second voice alerts for violations or emergencies with vibration and on-screen messages. The cycle repeats until manually stopped or after 30 seconds of inactivity.
When evacuation commands are received, the wristband plays evacuation prompts in a loop with visual and haptic feedback.
Call reminders are relayed through voice, vibration, and screen alerts.
Product Parameters
|
Product Dimensions |
40.1×48.8×16.1mm |
|
Positioning Technology |
UWB + AOA/Beacon + BD/GPS Satellite Positioning |
|
Charging Interface |
Pogo Pin-4 (Magnetic Type) |
|
Battery Type |
Polymer Lithium-Ion Battery |
|
Charging Voltage/Current |
4.5-5.5V / 125mA |
|
POGO PIN Interface |
ESD Protection IEC61000-4-2: 8kV (contact) |
|
Communication Wireless System |
802.15.4g FSK (900 MHz Zigbee) and 802.15.4 (2.4 GHz Zigbee) available |
|
Basic Functions |
Precise Positioning, Vibration Reminder, Pressure Measurement, Electronic Display Screen, Two-Way Communication, Low Battery Alarm, Remote Upgrade, Text Message Delivery, Built-in RFID, Supports One-Card System |
Application Scenarios
-
Two-way Communication Alert System
The SOS button triggers real-time uplink alerts in emergency situations. Remote paging, evacuation commands, and violation alerts provide timely warnings and notifications.
-
Multi-Functional Health Monitoring
Real-time monitoring covers heart rate, blood oxygen, body temperature, and other listed health metrics, supporting comprehensive tracking of personnel health status.
-
Precise Personnel Positioning
Multi-system compatibility supports switching between indoor and outdoor scenarios. Precise positioning and real time tracking provide real-time wearer location information, while personnel tracking and location tracking support continuous visibility of the wearer.
