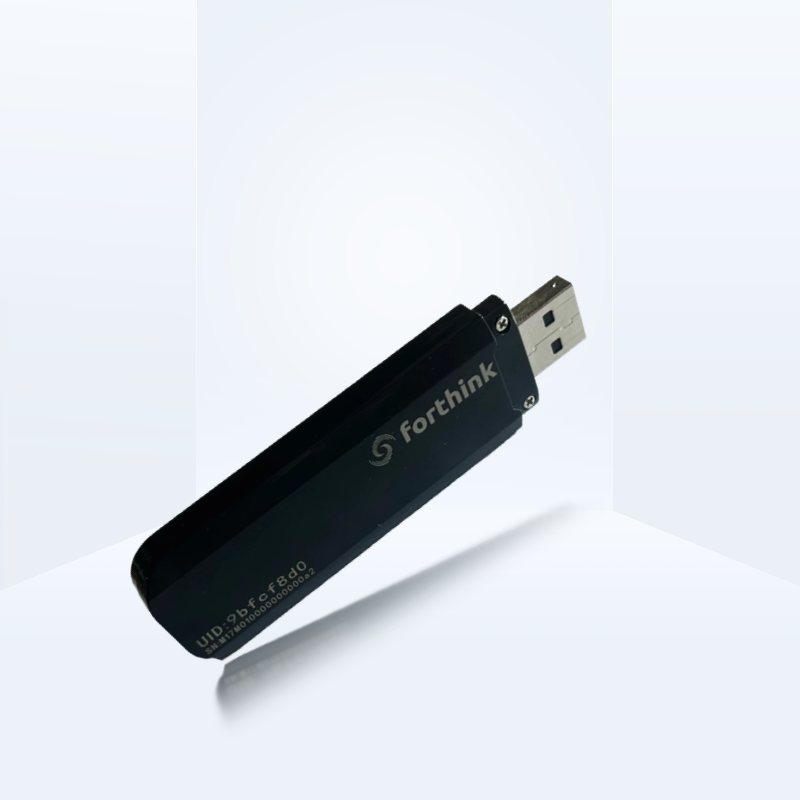

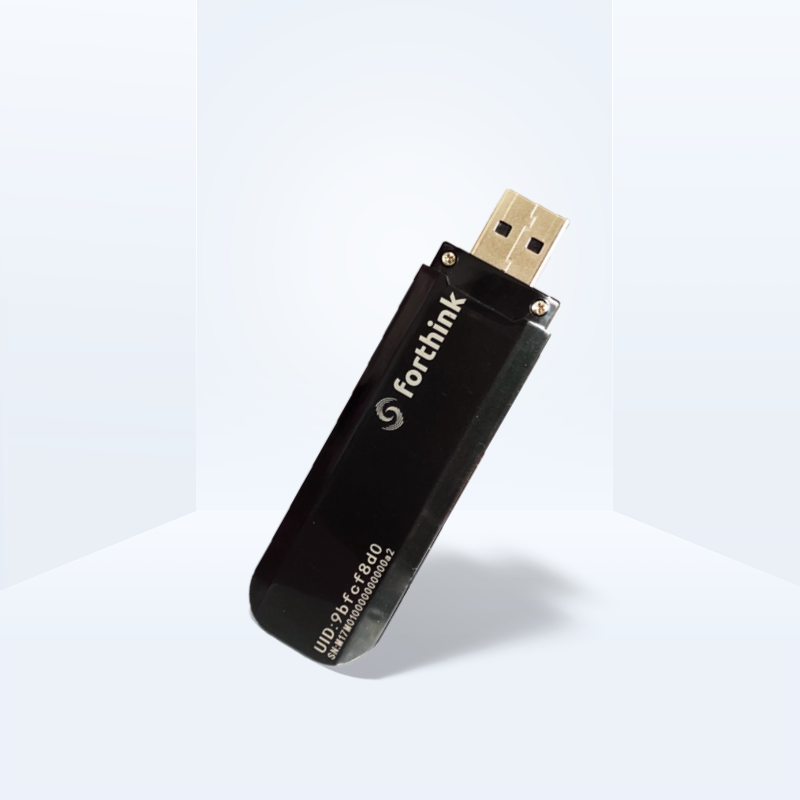

Eforthink UWB Dongle Sniffer - UWB Ultra-Wideband Detection Packet Sniffer Protocol Analyzer
Advantages
Features
Parameters
Application
Core Technical Advantages
● Professional Technical Support
Professional technical support services are provided for the UWB device.
● Supported Protocols
The UWB technology supports FiRa and CCC protocols.
● Supported Frequency Bands
The UWB device supports frequency bands 5/9 (6.0G~8.5G).
● CPU Core
The UWB device uses an ARM® Cortex-M33 32-bit processor.
● Online Upgrade
Online upgrade is supported for the UWB device.
● Firmware Package Encryption
Firmware package encryption is supported by the UWB device.
● Host Communication Interface
The UWB device uses USB-A as the host communication interface.
Product Features
Fast Scanning and Tracking Monitoring
The product can quickly scan nearby ultra wideband devices and track, monitor, analyze and count UWB frames under a scanned parameter group. This feature keeps the UWB device focused on UWB frame scanning and monitoring.
Sending
The product can transmit UWB frames with a specific payload. The physical-layer protocol parameters are taken from the fast-scanning and tracking-monitoring parameters or from the parameters configured on the configuration page.
Power Estimation
The product can estimate the UWB transmission power of UWB transmitting equipment.
Frame Duration Calculation
The product can calculate the frame-duration composition of each frame-structure type under specific protocol parameters. The protocol parameters used for this function are independent of the configuration-page parameters and are used only for frame-duration calculation.
Product Parameters
UWB Dongle Sniffer module specification parameters
|
Module size |
72.0x20.0x1.0mm |
|
Power supply interface |
USB |
|
Operating voltage |
4.5 - 5.5V |
|
Operating current |
≤150mA |
|
CPU core: |
ARM® Cortex - M33 32 - bit processor |
|
Online upgrade |
Supported |
|
Firmware package encryption |
Supported |
|
Host communication interface |
USB - A |
UWB Dongle Sniffer module radio frequency parameters (UWB)
|
Wireless standard |
IEEE Std 802.15.4™ - 2020, backward compatible |
|
Supported frequency bands |
5/9 (6.0G ~ 8.5G) |
|
Supported protocols |
FiRa, CCC |
|
Typical transmission power for positioning |
- 41.3dbm/MHz |
|
Maximum transmission power |
- 23dbm/MHz |
|
Engineering coverage (unobstructed) |
100m |
|
Transmission data rate |
6.8M/7.8Mbps |
|
Receiving sensitivity |
≤-95 dBm (PRF64M, preamble length 64, data rate 6.8M) |
* Under unobstructed engineering conditions, the stated UWB range is 100 m. The RF parameters also list a 6.8M/7.8 Mbps transmission data rate and receiving sensitivity of ≤-95 dBm under PRF64M, preamble length 64 and a 6.8M data rate.
Application Scenarios
-
Logistics
Logistics UWB applications include blind positioning of rooms, nooks and strongly shaded areas in warehousing and logistics parks. -
Industrial IoTIndustrial IoT UWB applications include blind positioning in occluded areas of manufacturing plants.
