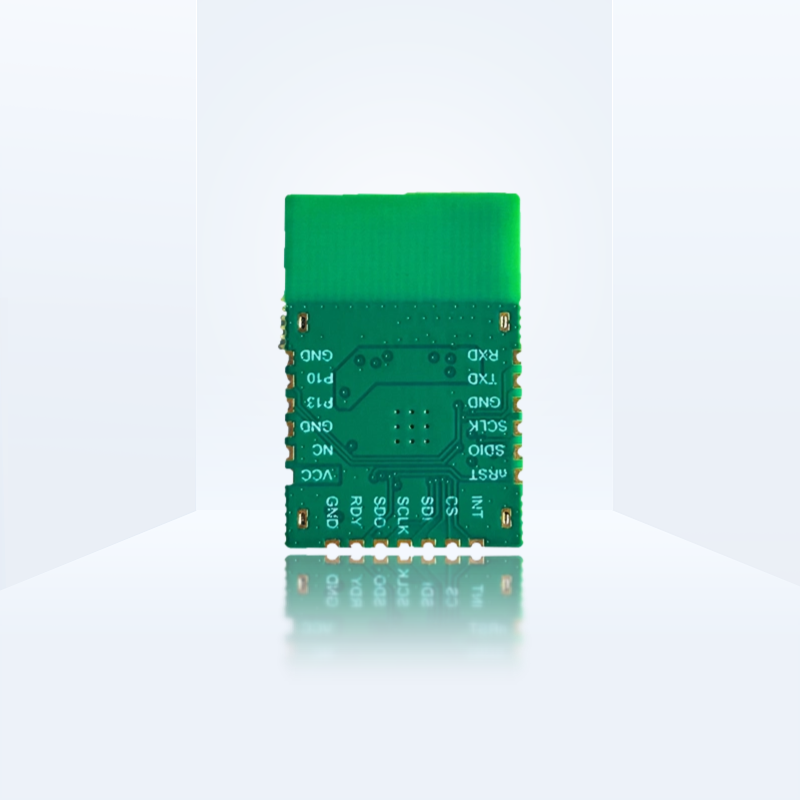

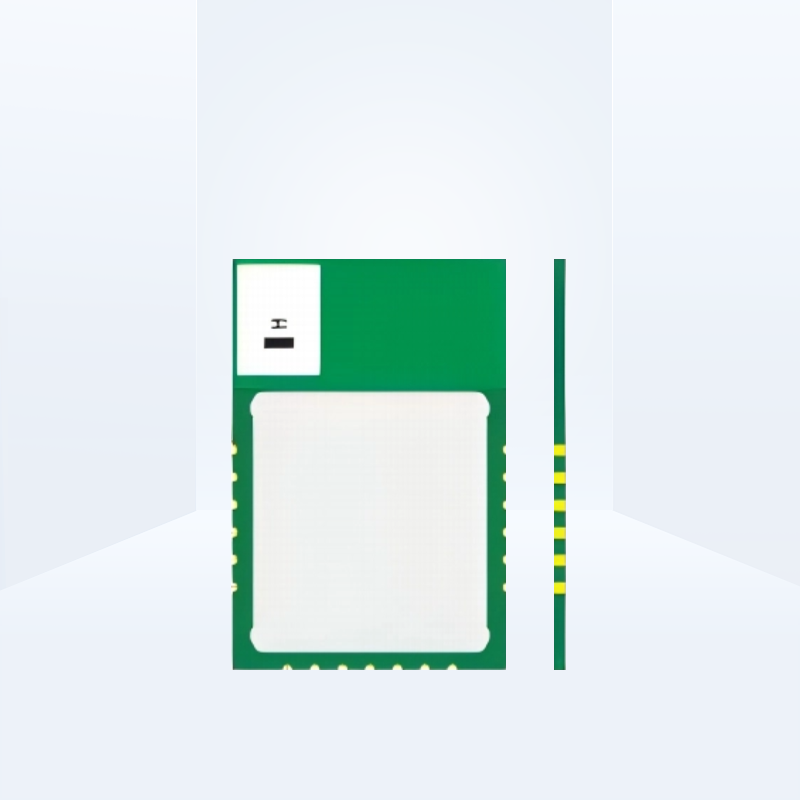

Eforthink UWB Dongle - UWB Ranging and Positioning Base Station Tag Module
Advantages
Features
Parameters
Application
Core Technical Advantages
● Automotive-Grade Quality
The UWB device is designed with automotive-grade quality.
● Independently developed and produced
The UWB device is independently developed and produced.
● Precise Position Sensing
The product focuses on precise position sensing technology and supports precise positioning with centimeter-level UWB positioning.
● Professional Technical Support
Professional technical support services are provided for this UWB device.
● Supported Protocols
The UWB technology supports FiRa and CCC protocols. FiRa, CCC
The UWB technology supports FiRa and CCC protocols. FiRa, CCC
● Supported Frequency Bands
The UWB device supports frequency bands 5/9 (6.0G~8.5G).
Product Features
-
-
Connection Topology of 6-Wire SPI and HostThe product includes a connection topology for the 6-wire SPI interface and host.
Timing Diagram of Host Sending Commands (CMD) to Module
● The host sets SS to the active state.
● The host checks whether there is an INT request during this period.
● If there is an INT request, the host postpones sending the command and receives a notification from the module.
● The module prepares the SPI peripheral for subsequent operations.
● The module activates RDY to notify the host that data transmission can start.
● After data transmission is completed, the host deactivates SS.
● The module waits for SS to be deactivated.
● The module ends receiving and deactivates RDY.
Timing Diagram of Module Sending Responses (RSP) and Notifications (NTF) to Host
● The module prepares SPI and pushes INT to the active state.
● The host is triggered when INT is activated.
● The module waits for SS to be activated.
● The host sets SS to the active state and performs SPI transmission.
● To determine the response length, the host can first receive the first four bytes containing the UCI header and length information.
● The host can then read the remaining bytes.
● The host shall not revoke SS between the two SPI transmissions.
● Alternatively, the host can transmit the maximum UCI packet length.
● Once the SS line is activated, the module takes the data as subsequent SPI transmissions and ignores the incoming data.
● When data transmission is completed, the INT line is deactivated.
● The host waits for the INT line to be deactivated before releasing the SS line to avoid a race condition.
Product Parameters
|
Module size |
72.0x20.0x1.0mm |
|
Power supply interface |
USB |
|
Working voltage |
4.5 - 5.5V |
|
Working current |
≤150mA |
|
Positioning wireless standard |
IEEE Std 802.15.4™ - 2015 |
|
Positioning supported frequency bands |
5/9 (6.0G ~ 8.5G) |
|
Positioning method |
TOF/TDOA |
Application Scenarios
-
Intelligent LogisticsPrecise positioning helps enhance efficiency and streamline cargo management. The UWB positioning capability provides centimeter-level position sensing for this application.
-
Intelligent IndustryCentimeter-level accuracy helps optimize automated production scheduling and safety. The UWB ranging capability provides the stated centimeter-level accuracy for this industrial application.
