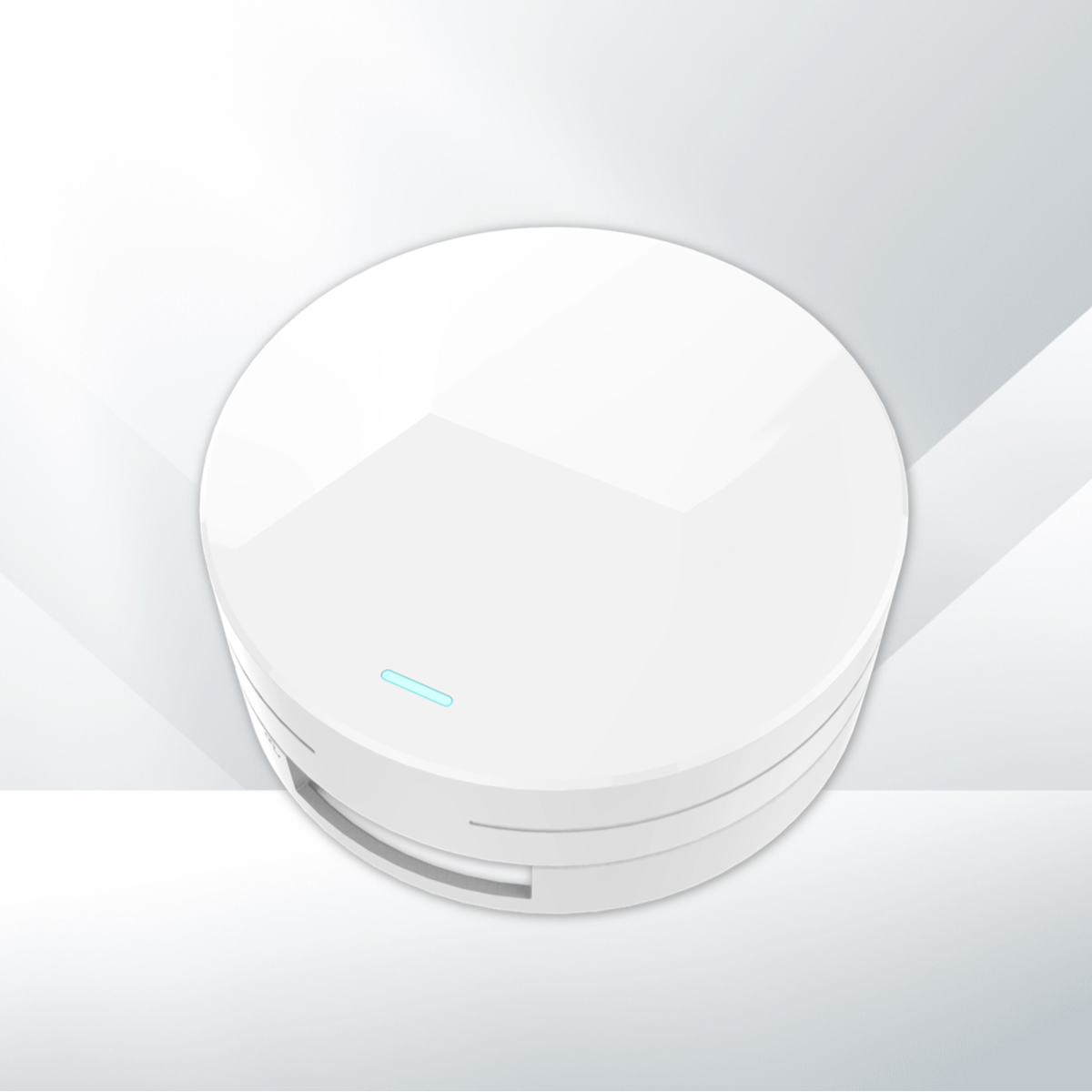

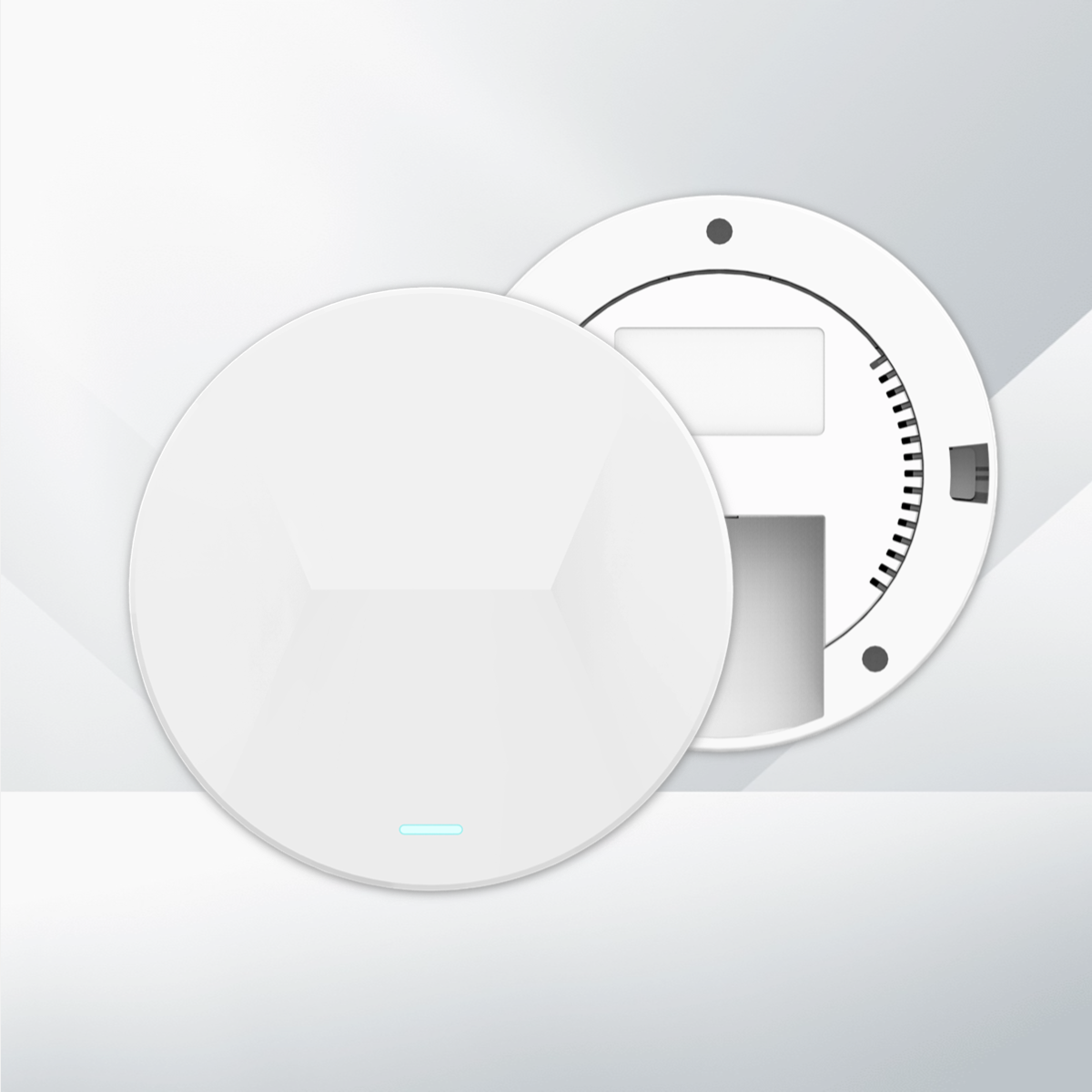

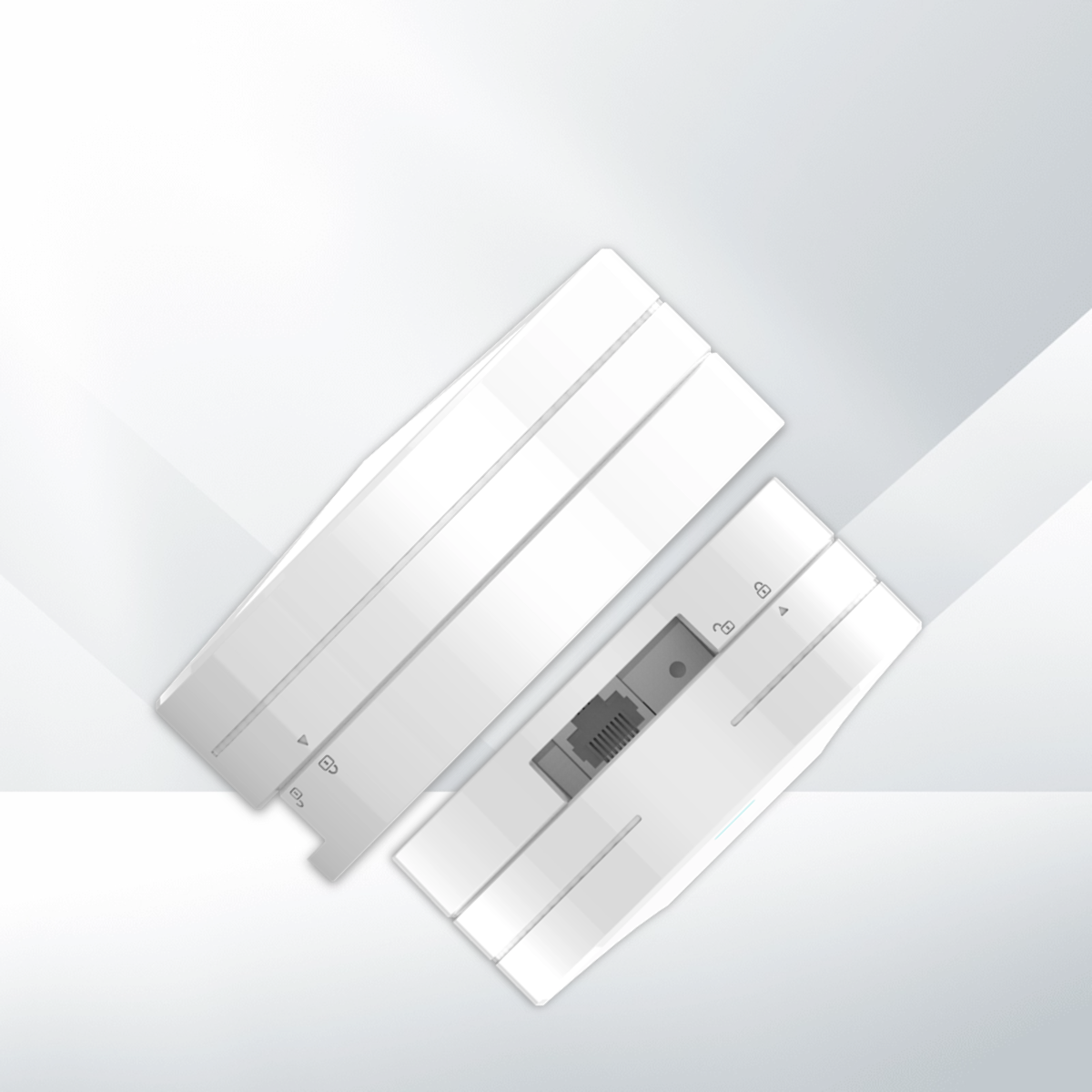

Eforthink UWB Indoor Ceiling-Mounted Positioning Base Station
Advantages
Features
Parameters
Application
Core Technical Advantages
● LED-Based Status & Maintenance Indicators
LED status and maintenance indicators simplify diagnostics and maintenance workflows and help reduce downtime in RTLS anchor deployments.
● Low-Profile Design

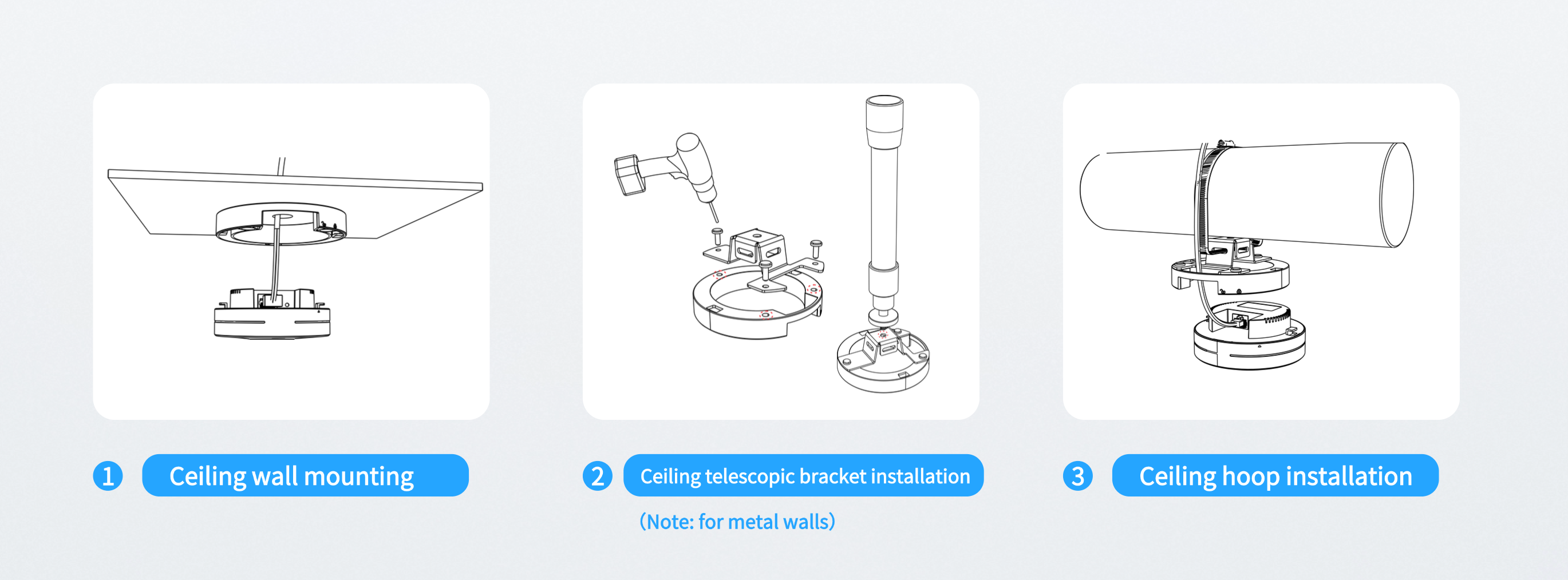

The compact form factor supports discreet ceiling-mounted installation in environments that require minimal visual intrusion while maintaining UWB anchor performance.
● System-Level Sensor Fusion Positioning
The product integrates UWB positioning with multi-sensor data fusion to enhance positioning accuracy and reliability in complex indoor environments.
● Centimeter-Level Positioning Accuracy
UWB positioning provides high-precision tracking with accuracy of ≤30 cm and strong anti-multipath capability for stable signal performance in challenging environments. This positioning performance supports precise positioning.
● Scalable RTLS Infrastructure
The device functions as an RTLS anchor and supports flexible network expansion for large-scale tracking deployments.
LED status and maintenance indicators simplify diagnostics and maintenance workflows and help reduce downtime in RTLS anchor deployments.
● Low-Profile Design
The compact form factor supports discreet ceiling-mounted installation in environments that require minimal visual intrusion while maintaining UWB anchor performance.
● System-Level Sensor Fusion Positioning
The product integrates UWB positioning with multi-sensor data fusion to enhance positioning accuracy and reliability in complex indoor environments.
● Centimeter-Level Positioning Accuracy
UWB positioning provides high-precision tracking with accuracy of ≤30 cm and strong anti-multipath capability for stable signal performance in challenging environments. This positioning performance supports precise positioning.
● Scalable RTLS Infrastructure
The device functions as an RTLS anchor and supports flexible network expansion for large-scale tracking deployments.
Product Features

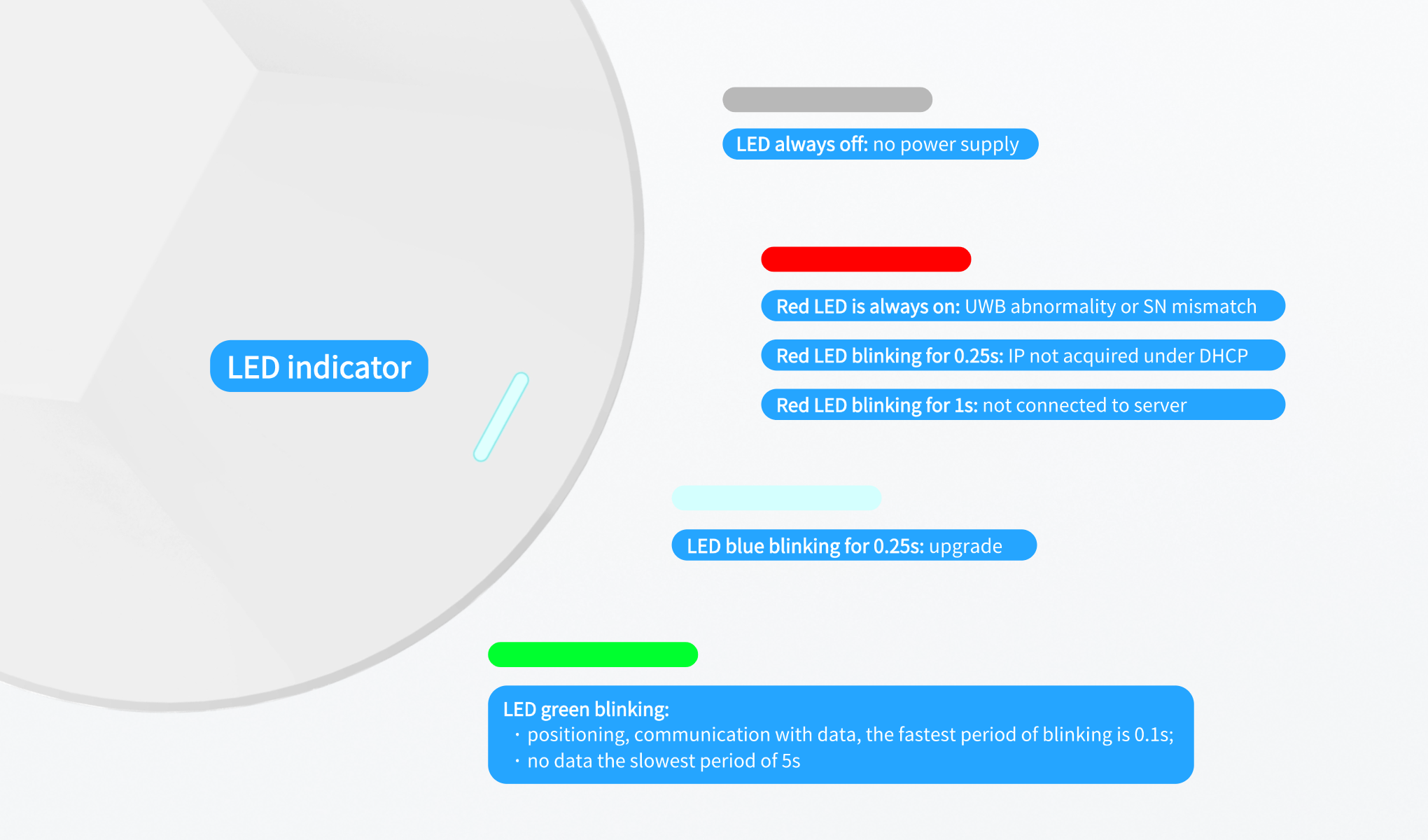

The base station has a single LED indicator with red, blue, and green status colors. Only one status color is displayed at a time.

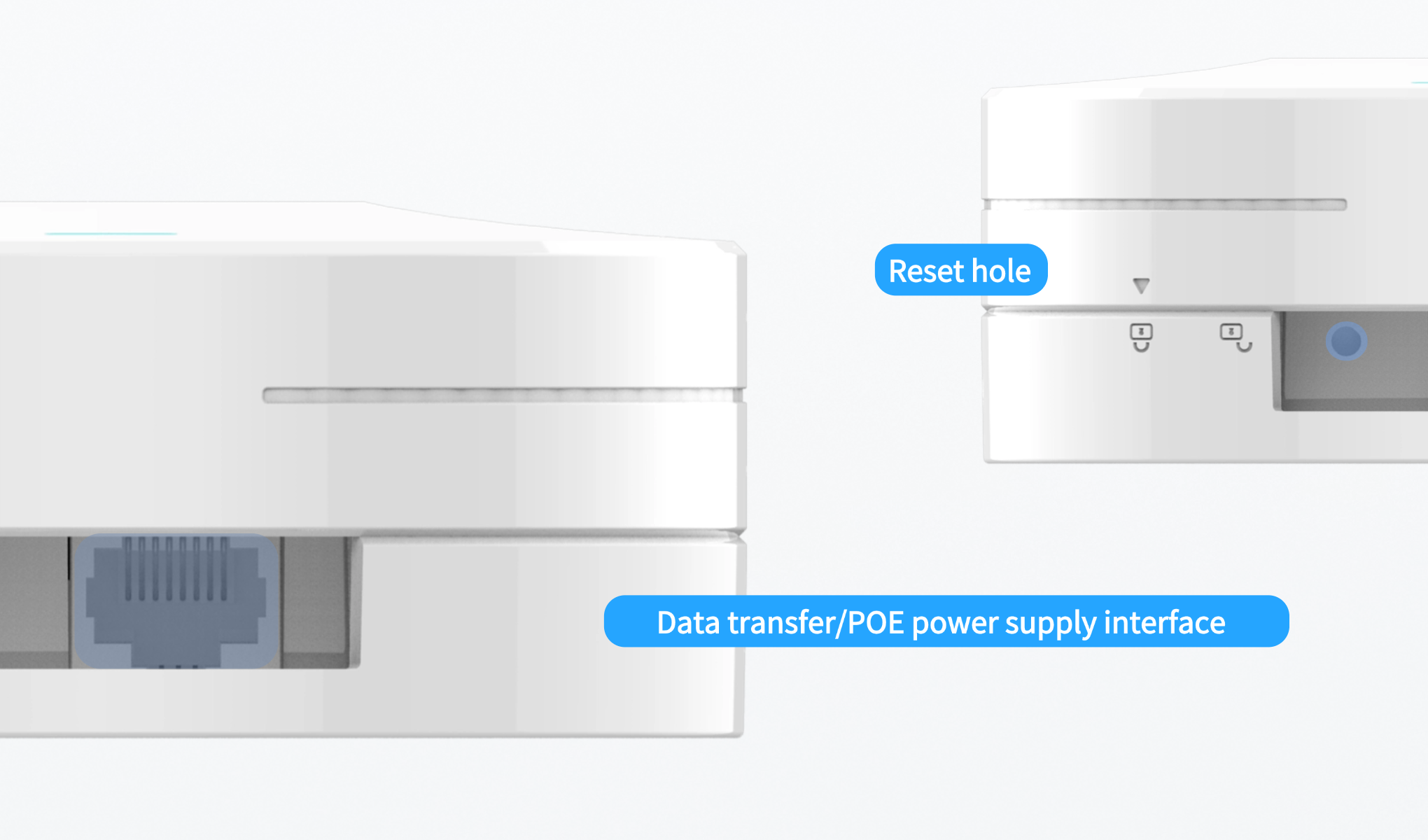

Long-press the reset button for 10 seconds to reset the base station. The reset restores BTS network parameters to factory settings. During reset, the red, blue, and green LEDs flash sequentially for three cycles. Each cycle lasts 1.5 seconds, with each color displayed for 0.5 seconds.
Product Parameters
|
Product Dimensions |
96x96x40.5mm |
|
Positioning Technology |
UWB |
|
Positioning Wireless Standard |
IEEE802.15.4_2011 UWB |
|
Rated supply voltage |
48V standard POE (IEEE802.3at) |
|
Power supply current |
55mA@POE48V |
|
Wired communication data mode |
LAN (10M/100M adaptive) |
|
Network port electrostatic protection |
8kV (contact discharge)/15kV (air discharge) |
|
Basic Functions |
Priority reception of emergency help messages from tag cards; tag-card battery-status monitoring; “group call”; “individual call”; parameter reset |
Application Scenarios
-
Smart Elderly Care Solution
The Smart Elderly Care Solution provides real-time location tracking and historical trajectory analysis. Its functions include location tracking, personnel distribution statistics with video linkage, one-click emergency alerts, and smart attendance management. -
Production Material Positioning Management Solution
The Production Material Positioning Management Solution uses equipment tracking tags as data carriers. Equipment tracking captures real-time status across material production, transportation, and storage, enabling full-lifecycle visibility and traceability. -
Production Line Torque Wrench Positioning Management
The Production Line Torque Wrench Positioning Management scenario uses real-time location tracking. Location tracking and the spatial relationship between vehicle bodies and torque tools are used to synchronize tightening operations with production-line progress, reducing human error and improving process accuracy.
