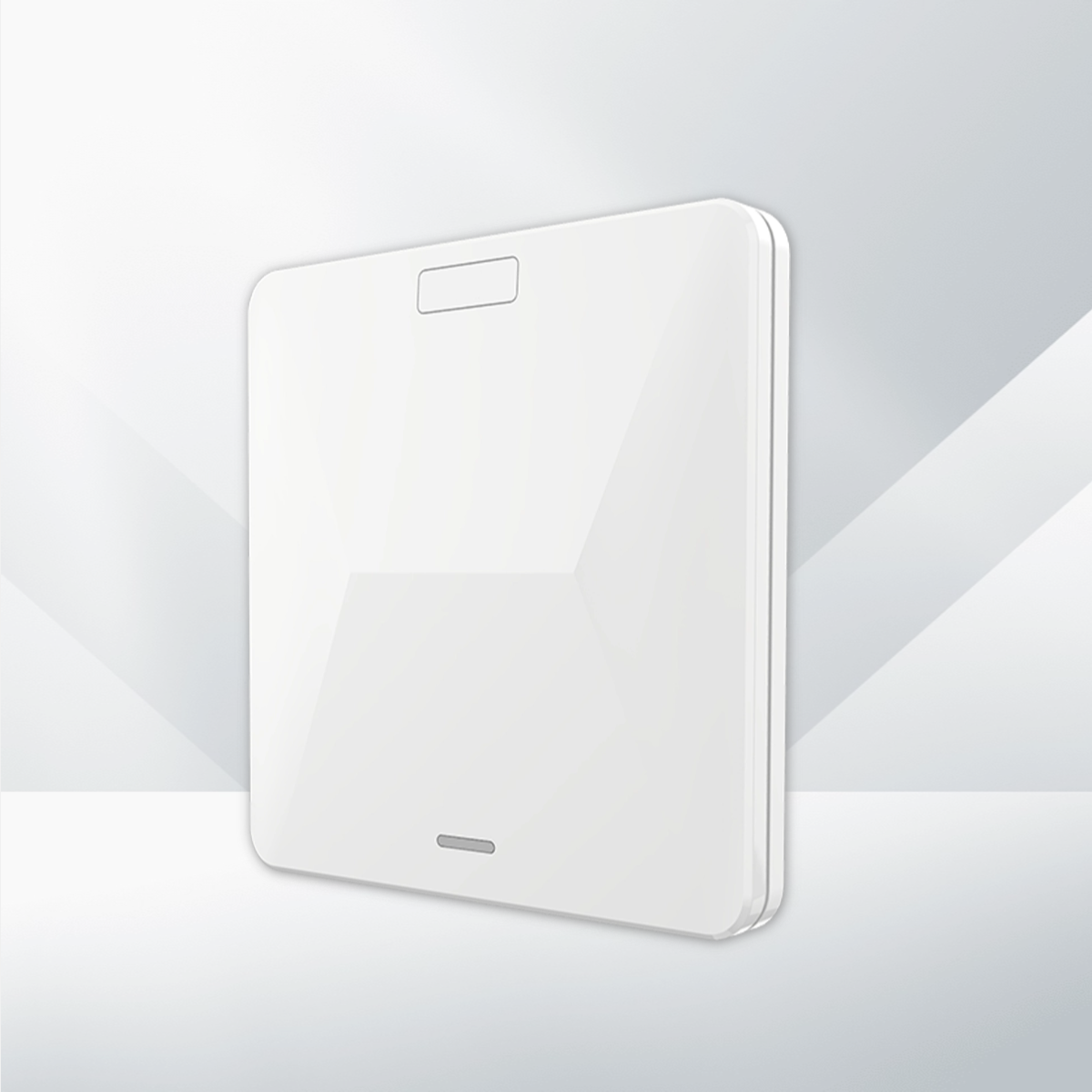

Eforthink UWB Indoor Wall-Mounted Positioning Base Station
Advantages
Features
Parameters
Application
Core Technical Advantages
● Sensor Fusion Positioning Algorithm
UWB positioning technology combines with multi-sensor data fusion to enhance accuracy and reliability in complex indoor environments and support precise positioning.
LED-based status and maintenance indicators streamline diagnostics and maintenance for RTLS anchor networks and reduce system downtime.
UWB positioning technology delivers high-precision tracking with accuracy below 30 cm and strong anti-interference capability, supporting precise positioning.
The base station functions as a flexible UWB anchor for factories, warehouses, hospitals, and smart building environments.
With a product weight below 300 g, the base station is easy to install and reposition for dynamic environments requiring flexible RTLS deployments.
Product Features

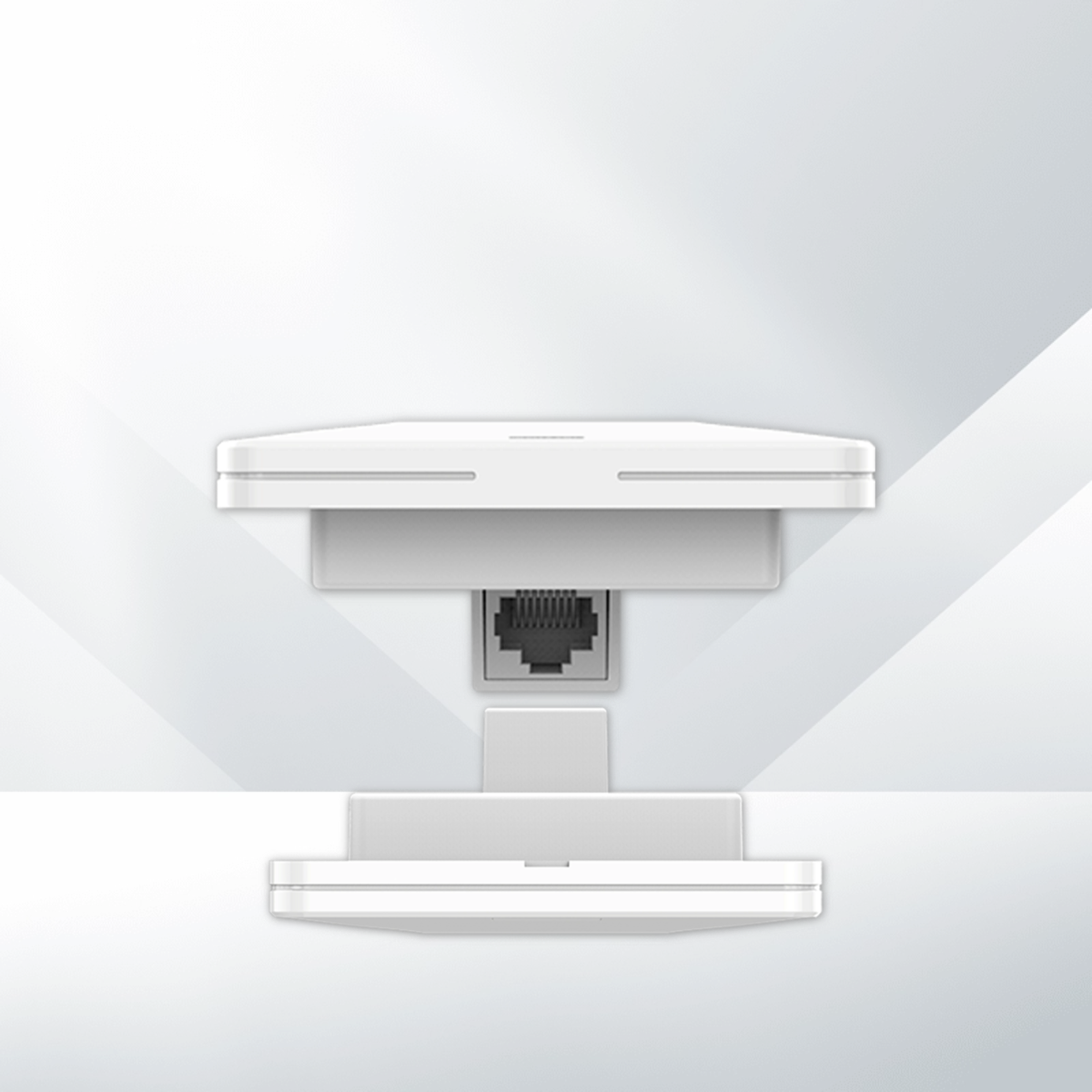

The base station must be installed vertically, with the ID label and Ethernet port aligned vertically. Both upward and downward mounting orientations are supported.
In metal-ceiling environments, the antenna should face downward and remain away from metallic obstructions to maintain optimal UWB anchor signal performance.
Network Configuration Best Practices
Use branded Cat5e cable up to 80 m or Cat6 cable up to 100 m for stable network connectivity.
Label all cables to simplify maintenance and troubleshooting in an RTLS system.
DHCP enables dynamic IP assignment and reduces the need for static IP configuration.
Product Parameters
|
Product Dimensions |
86.6×86.6×36.0mm |
|
Positioning Technology |
UWB |
|
Positioning Wireless Standard |
IEEE802.15.4_2011 UWB |
|
Rated Power Supply Voltage |
48V Standard POE |
|
Wired Communication Data Interface |
10M/100M LAN Adaptive |
|
Wireless communication data interface |
WIFI_802.11b/g/n@2.4G |
|
Power supply interface |
POE |
|
Antenna |
Built-in on-board |
|
Network interface electrostatic protection |
8kV (contact discharge)/15kV (air discharge) |
|
Basic Functions |
Priority to Receive Emergency Help Messages from Tag Cards, Monitor Battery Status of Tag Cards, Perform “Group Call” and “Individual Call”, and Parameter Reset |
Application Scenarios
-
Vehicle Positioning Management in Automotive Repair ZonesBased on RTLS (Real-Time Location System), this solution optimizes workflow efficiency, monitors labor hours, and enables full-process supervision of inspection and repair operations, improving productivity and quality control.
-
Production Line Torque Wrench Tracking
The UWB-based RTLS system enables real time tracking and high-precision tracking of torque tools on assembly lines, ensuring accurate tightening processes and reducing operational errors. This tool tracking follows production-line operations. -
Nursing Home Staff Location Management
Based on RTLS technology, this solution provides integrated staff monitoring with health tracking, restricted-area alerts, emergency response, and personalized care support in elderly care facilities.
