Eforthink High Precision UWB Beacon Base Station
Advantages
Features
Parameters
Application
Core Technical Advantages
1. High-Precision Positioning with UWB Technology
Utilizes ultra-wideband (UWB) pulse signal technology to achieve sub-30cm accuracy. This UWB location technology reduces hardware costs compared to traditional systems while maintaining superior performance in RTLS applications.
2. Wireless Deployment for RTLS Flexibility
Powered by an internal battery and wireless transmission, the UWB anchor requires no cabling, enabling rapid deployment and seamless integration into RTLS real-time location systems.
3. Ultra-Long Battery Life
A 32,000mAh battery ensures 60 months of operation (at 1Hz refresh rate), minimizing maintenance in remote or hazardous areas.
4. Multi-Tag Identification
Capable of identifying hundreds of UWB beacons simultaneously, making it a robust location finding device for high-traffic industrial workflows.
Product Features
-
-

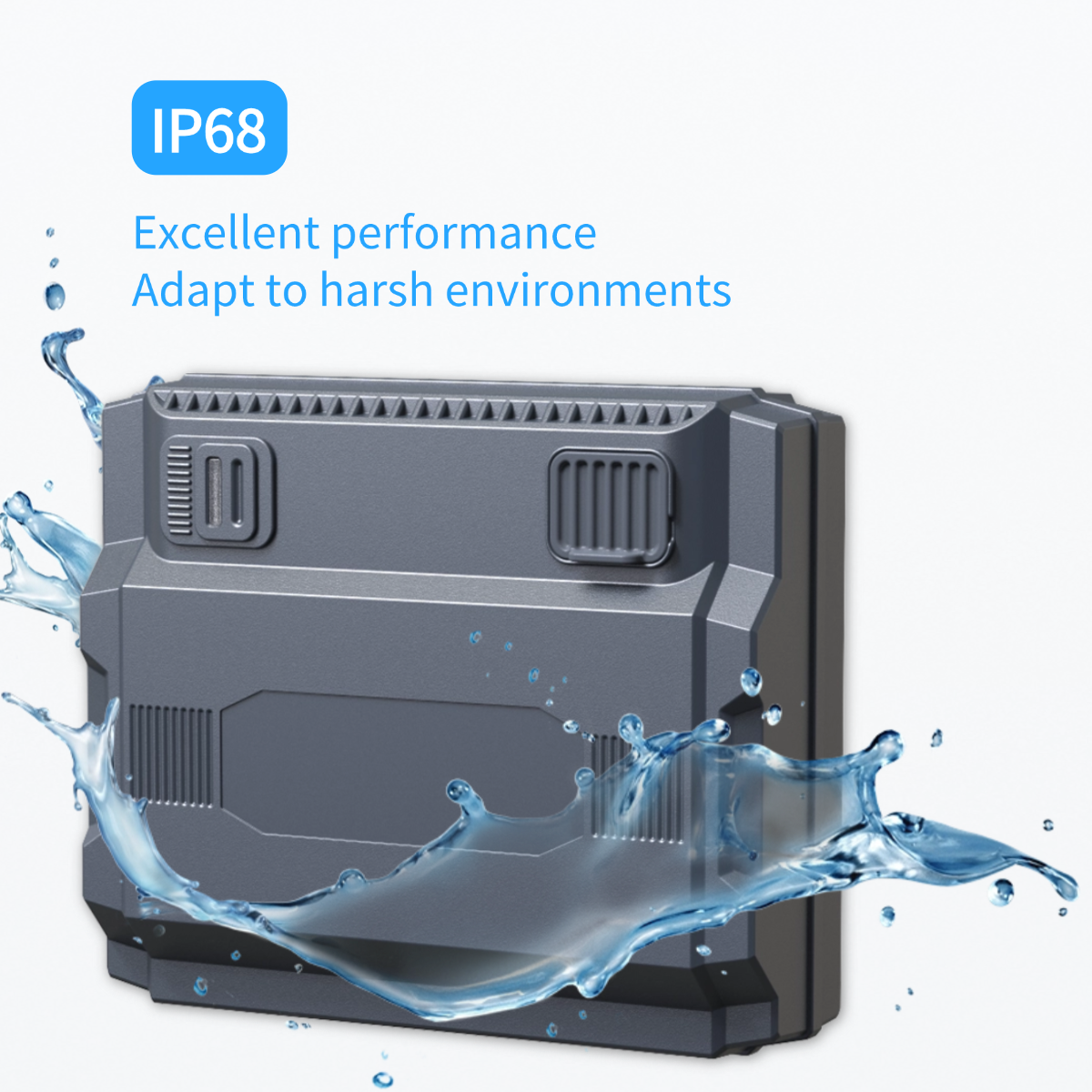

IP68 Protection: Waterproof, dustproof, and surge-resistant for harsh environments.Intrinsic Safety Design: Explosion-proof certification ensures safe use in volatile RTLS scenarios.
-

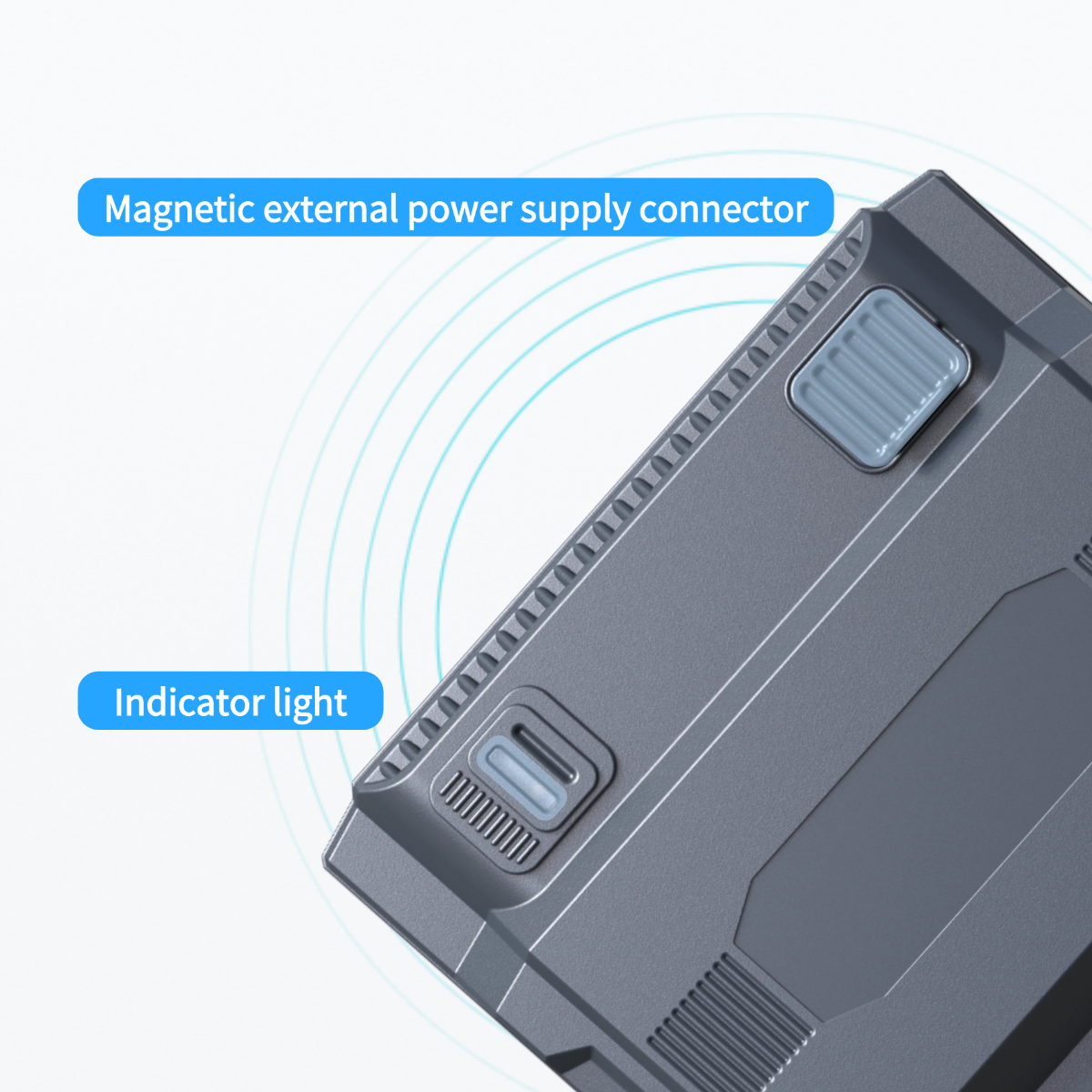

Indicator Lights:● External Power: Blue LED remains steady when using external power.● Firmware Upgrade: Green LED blinks during upgrades, synced with data packet rate.External Power Supply Instructions:● Remove the plastic plug from the base station’s power interface.● Secure the pogo pin magnetic charging cable using screws.● Connect the cable to a power adapter for continuous UWB beacon operation.
-
Product Parameters
|
Product Dimensions |
162.9×135.9×46.5 mm |
|
Positioning Technology |
UBeacon |
|
Maximum Battery Life |
≥60个月（1Hz） |
|
Positioning Wireless Standard |
IEEE802.15.4_2011 UWB |
|
Positioning method |
TOF |
|
Battery Capacity |
32000mAh |
|
Shell Air Discharge ESD Protection |
IEC61000-4-2:15kV（air） |
|
POGOPIN Interface ESD Protection |
IEC61000-4-2:8kV（contact） |
|
Function Configuration |
Accurate Positioning, Equipment Management, Bi-directional Communication, Low Battery Alert, Remote Upgrade |
Application Scenarios
-
High-precision positioning

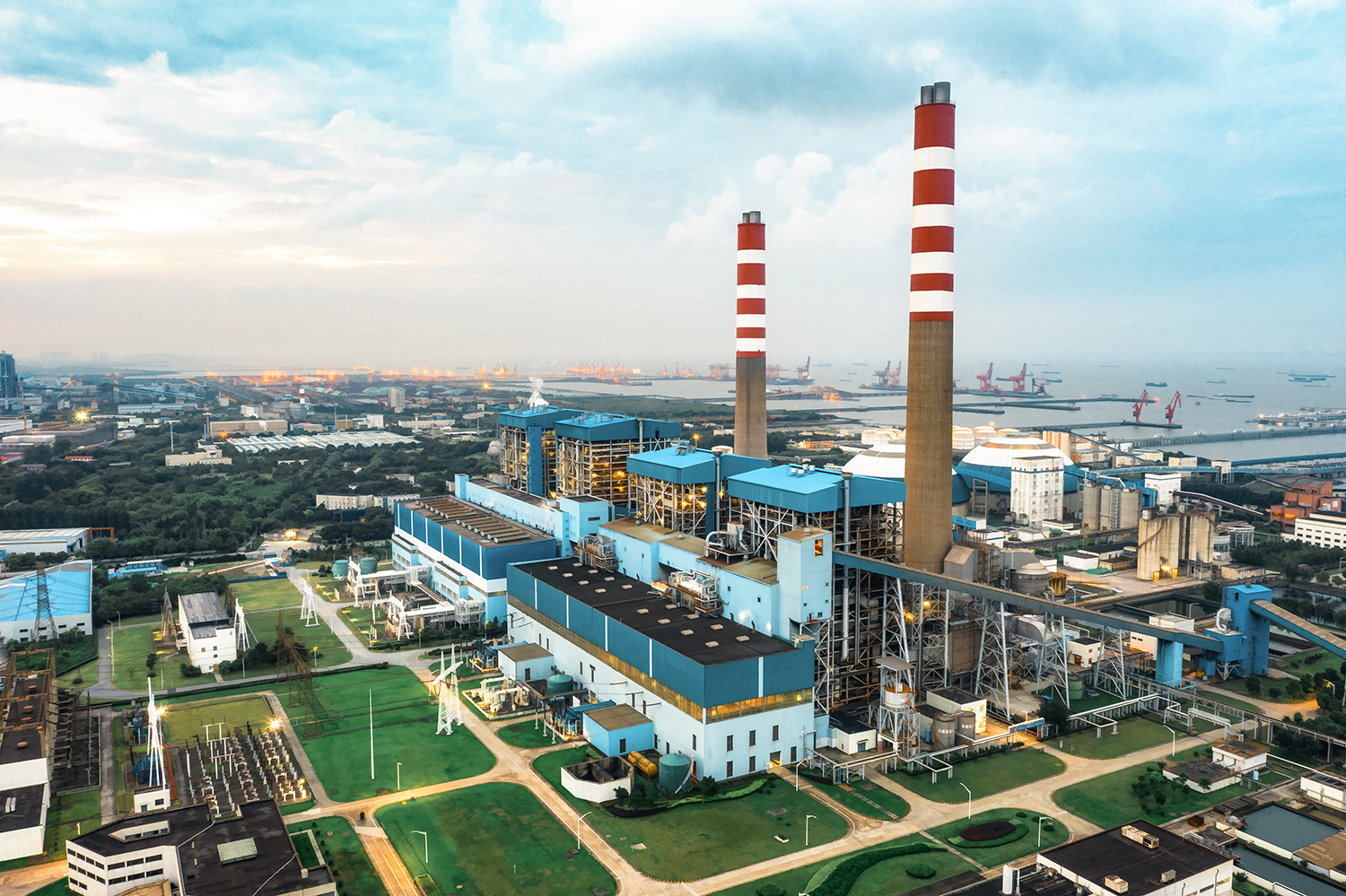

Deploy UWB anchors and location beacons in chemical plants, power stations, and tunnels to enable RTLS real-time location systems for personnel and asset tracking. -
High-precision ranging
Identification, security authentication, pass-by detection, collision avoidance detection and other applications.
