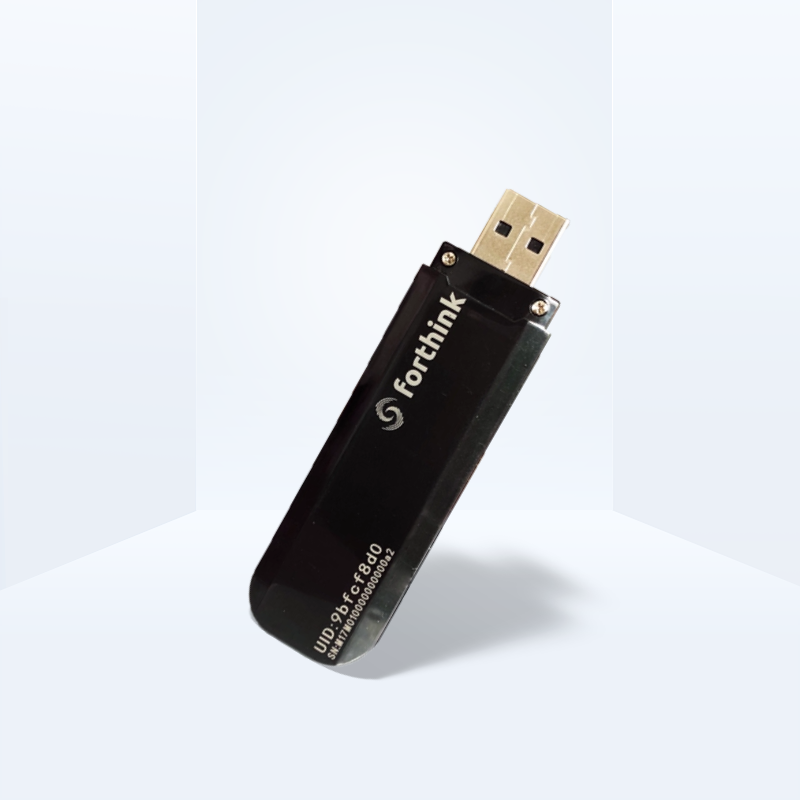

Eforthink UWB Dongle Sniffer - UWB Ultra-Wideband Detection Packet Sniffer Protocol Analyzer
Advantages
Features
Parameters
Application
Core Technical Advantages
● Provide professional technical support services
● Supported protocols: FiRa, CCC
● Supported frequency bands: 5/9 (6.0G ~ 8.5G)
● CPU core: ARM® Cortex - M33 32 - bit processor
● Online upgrade: Supported
● Firmware package encryption: Supported
● Host communication interface: USB - A
Product Features
Fast scanning and tracking monitoring
● It can be used to quickly scan nearby UWB devices, and track, monitor, analyze and count the UWB frames under a certain parameter group scanned out.
Sending
● It can be used to transmit UWB frames with specific Payload, and the physical layer protocol parameters transmitted are the protocol parameters of fast scanning and tracking monitoring or the protocol parameters configured on the configuration page.
Power estimation
● It can be used to estimate the UWB transmission power of UWB transmitting equipment.
Frame duration calculation
● It can be used to calculate the frame duration composition of each frame structure type under the configuration of specific protocol parameters. The protocol parameter configuration of this function is independent of the protocol parameter configuration of the configuration page and is only used for frame duration calculation.
Product Parameters
UWB Dongle Sniffer module specification parameters
|
Module size |
72.0x20.0x1.0mm |
|
Power supply interface |
USB |
|
Operating voltage |
4.5 - 5.5V |
|
Operating current |
≤150mA |
|
CPU core: |
ARM® Cortex - M33 32 - bit processor |
|
Online upgrade |
Supported |
|
Firmware package encryption |
Supported |
|
Host communication interface |
USB - A |
UWB Dongle Sniffer module radio frequency parameters (UWB)
|
Wireless standard |
IEEE Std 802.15.4™ - 2020, backward compatible |
|
Supported frequency bands |
5/9 (6.0G ~ 8.5G) |
|
Supported protocols |
FiRa, CCC |
|
Typical transmission power for positioning |
- 41.3dbm/MHz |
|
Maximum transmission power |
- 23dbm/MHz |
|
Engineering coverage (unobstructed) |
100m |
|
Transmission data rate |
6.8M/7.8Mbps |
|
Receiving sensitivity |
≤- 95dbm (this parameter refers to the configuration of PRF64M, preamble length 64, and data rate 6.8M) |
Application Scenarios
-
Logistics
Blind positioning of rooms, nooks, and strongly shaded areas in warehousing and logistics parks -
Industrial IoTManufacturing Plant Occluded Area Blind Positioning
