Eforthink UWB dual-channel high-precision positioning base station

Core Technical Advantages

Product Features

•

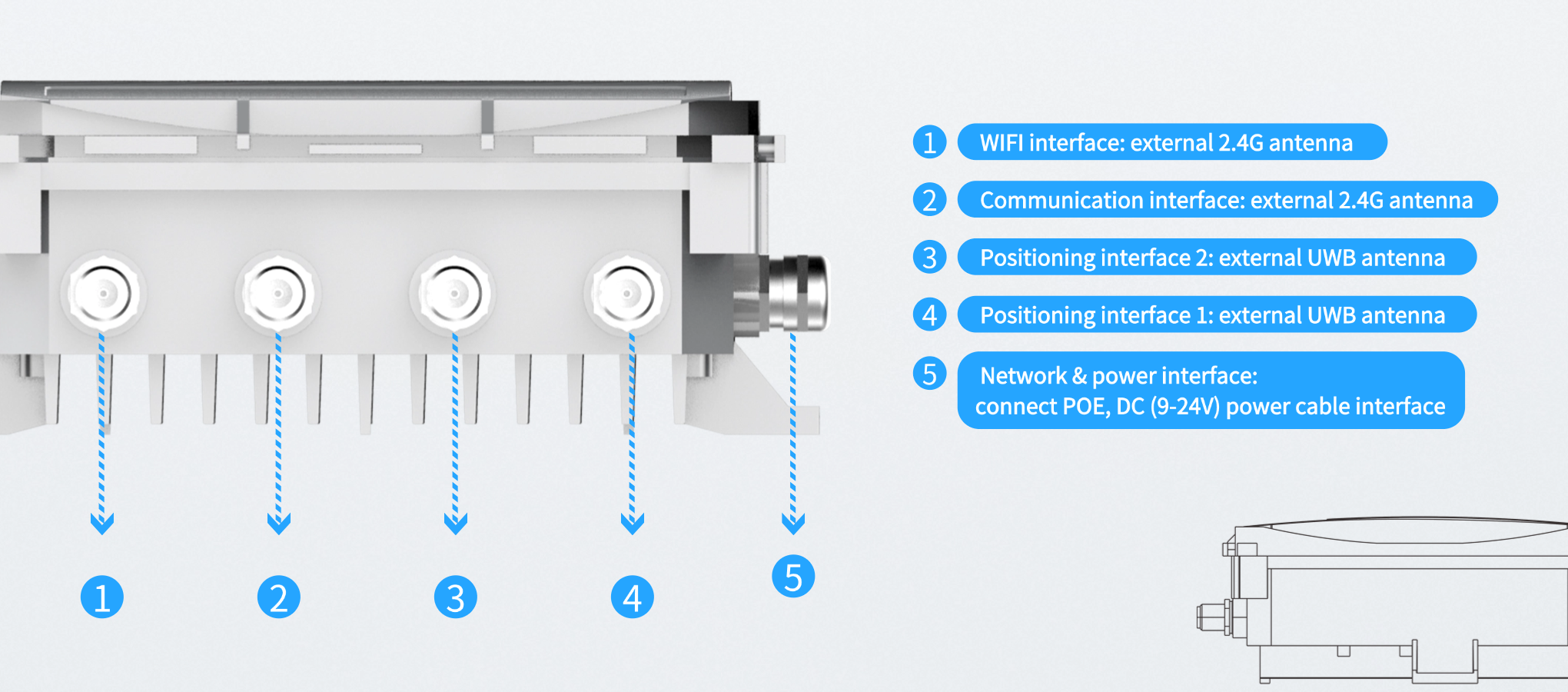

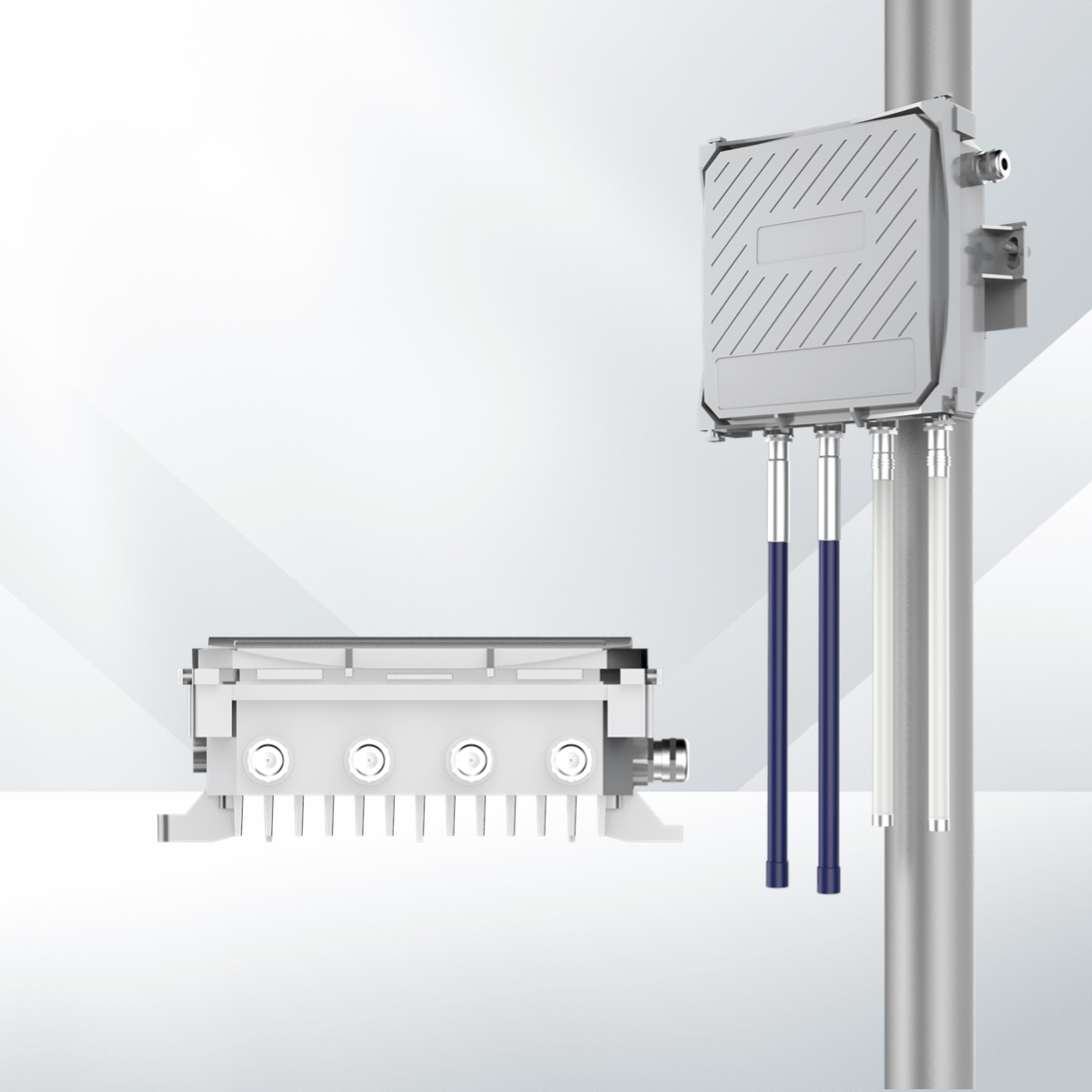

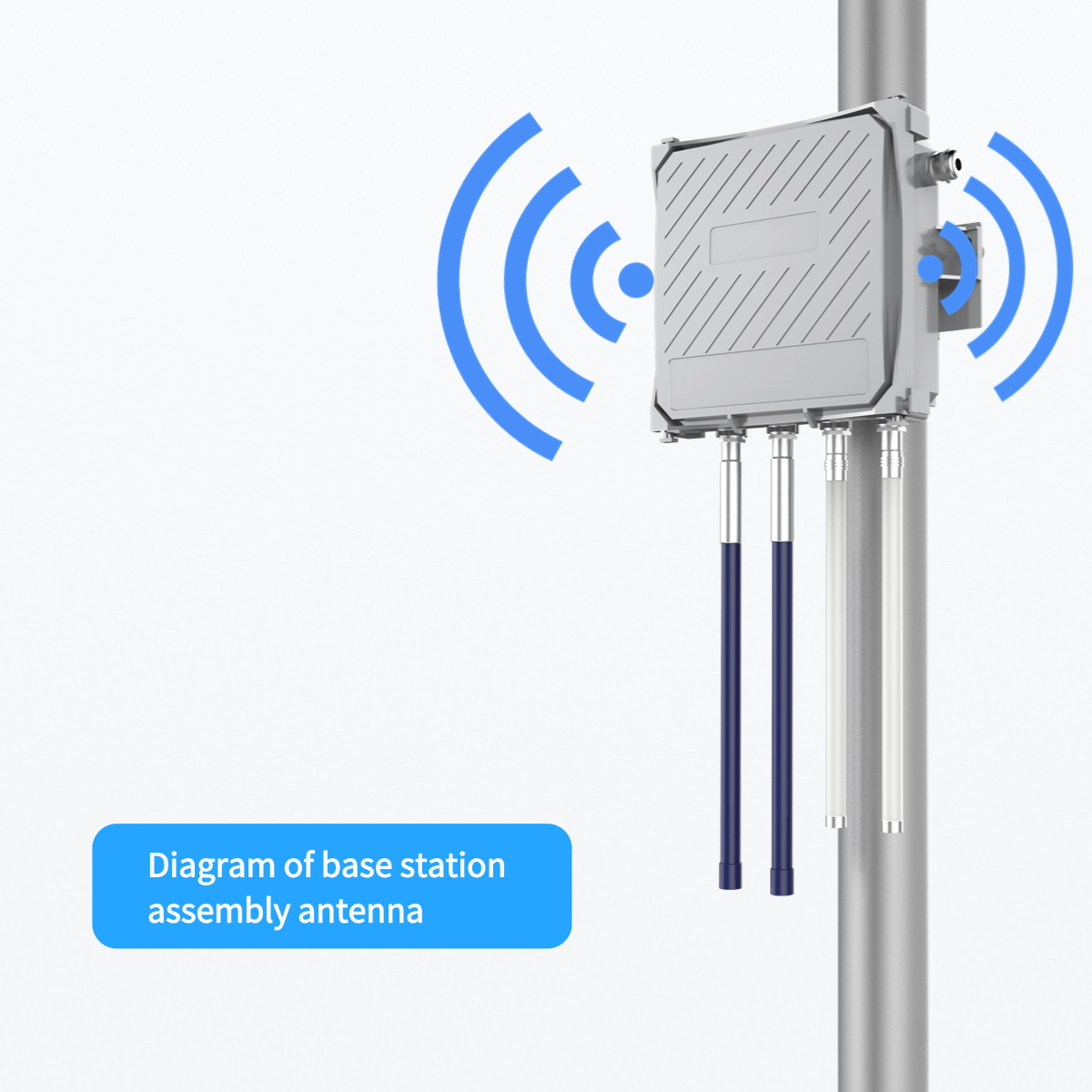

• Base station antenna assembly




  External antennas for BTS, such as omni-directional fiberglass antennas, can be directly connected to the BTS through the N-type connector without other accessories. It should be noted that when using FRP antenna, in order to get the best coverage effect, it is necessary to ensure that 10cm around the antenna is the clear zone. At the same time, you need to set the antenna delay on the system according to the antenna delay parameters provided to ensure optimal positioning accuracy.

• BTS Diversity Reception

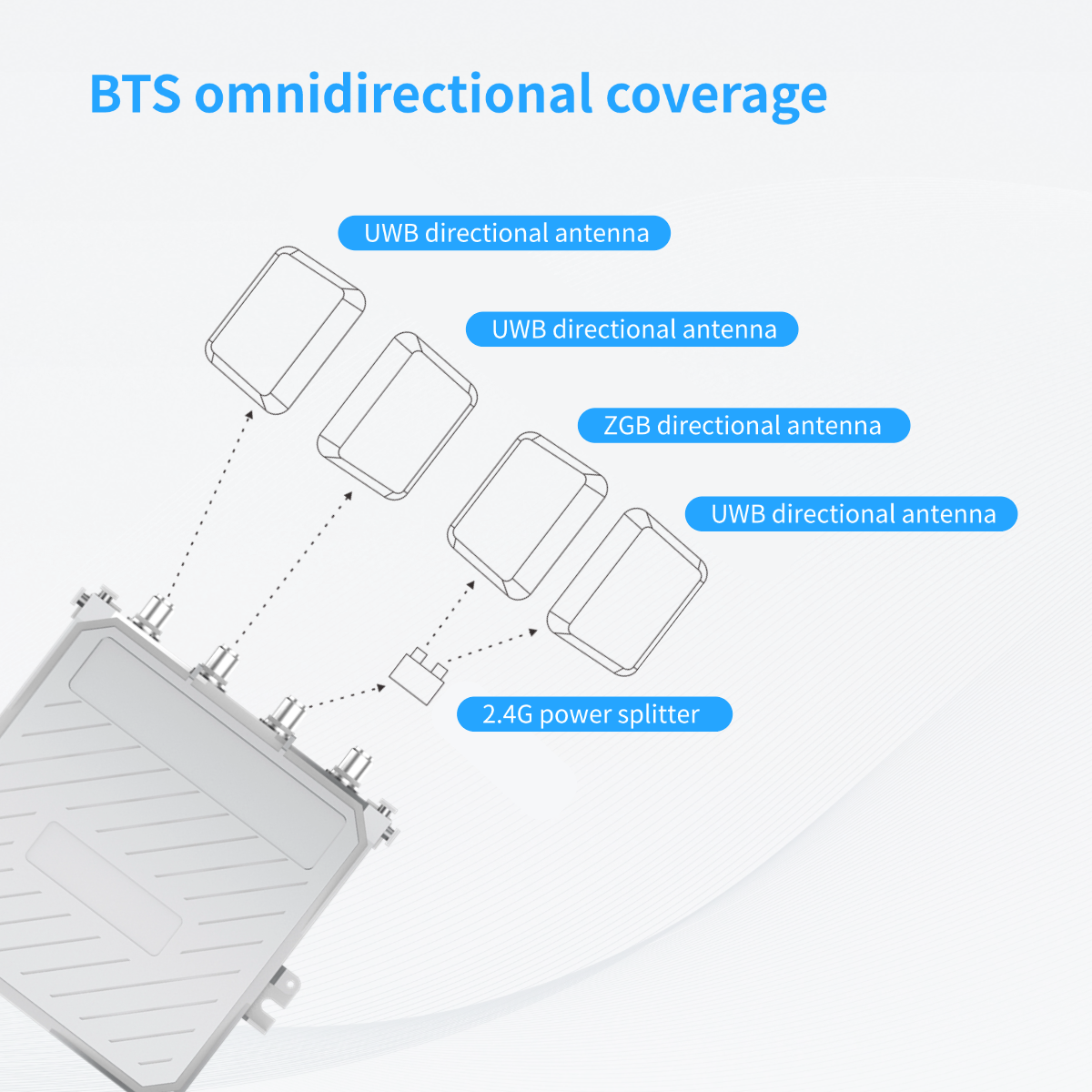

  BTS omnidirectional coverage description




  1) Dual antenna positioning: spatial diversity for more robust UWB coverage and positioning performance.

  2)Suitable for omnidirectional coverage distance applications of 50-150 meters.
•

•

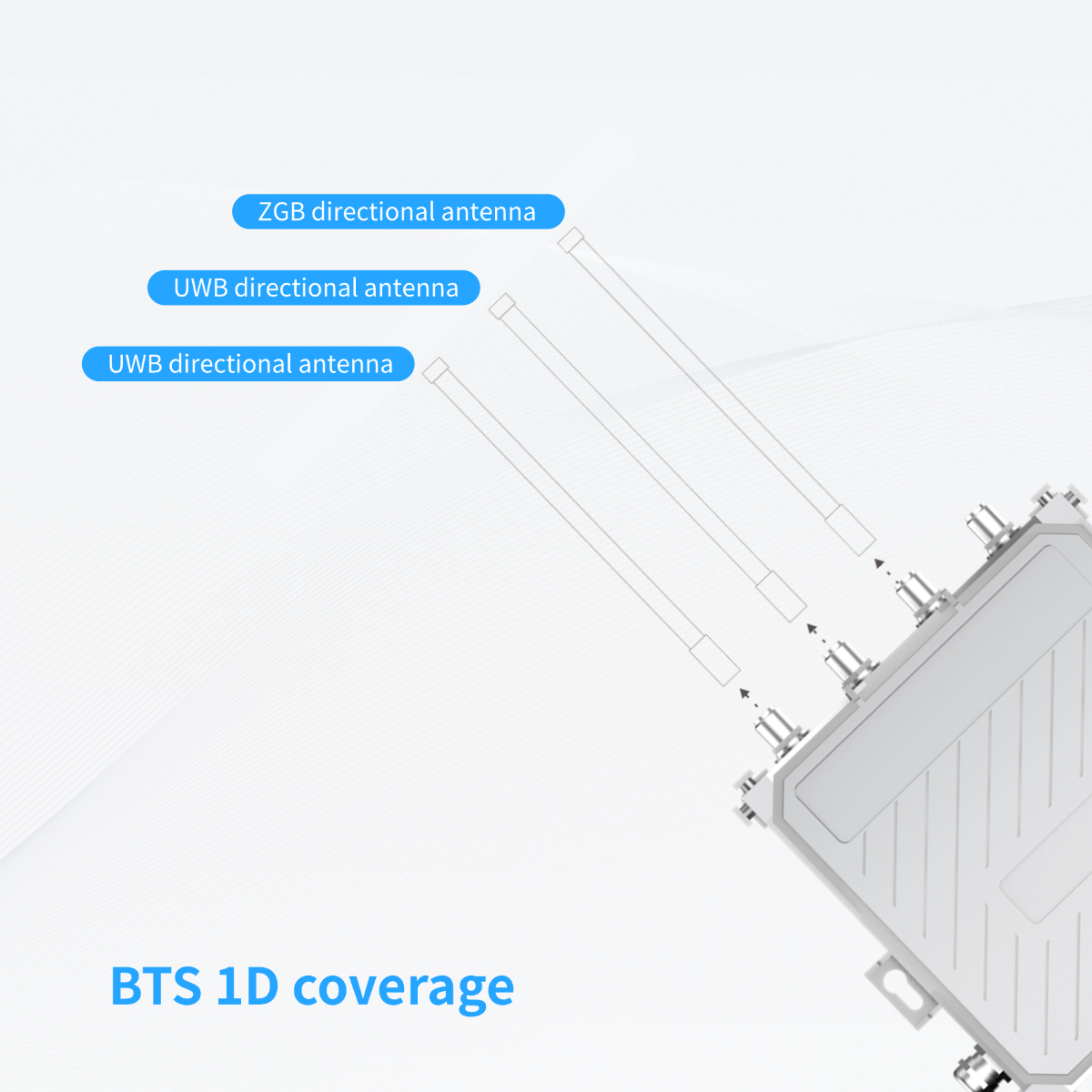

• BTS 1D coverage description




  1)Each UWB channel uses one directional antenna, each pointing to one side of the one-dimensional direction, and the spacing between the two UWB antennas needs to be greater than or equal to 1m.

  2)Zigbee uses a power splitter/tee connector to split two directional antennas, each pointing to one side of the one-dimensional direction.

  3)It is suitable for one-dimensional coverage within 250 meters.

Product Parameters

Application Scenarios

• Construction Sites

  Scalable RTLS Technology deployment for safety and efficiency.

• Harbors

  Precision monitoring of personnel/vehicles using UWB anchors.

• Large Parking Lots

  RTLS real time location system for vehicle tracking.
